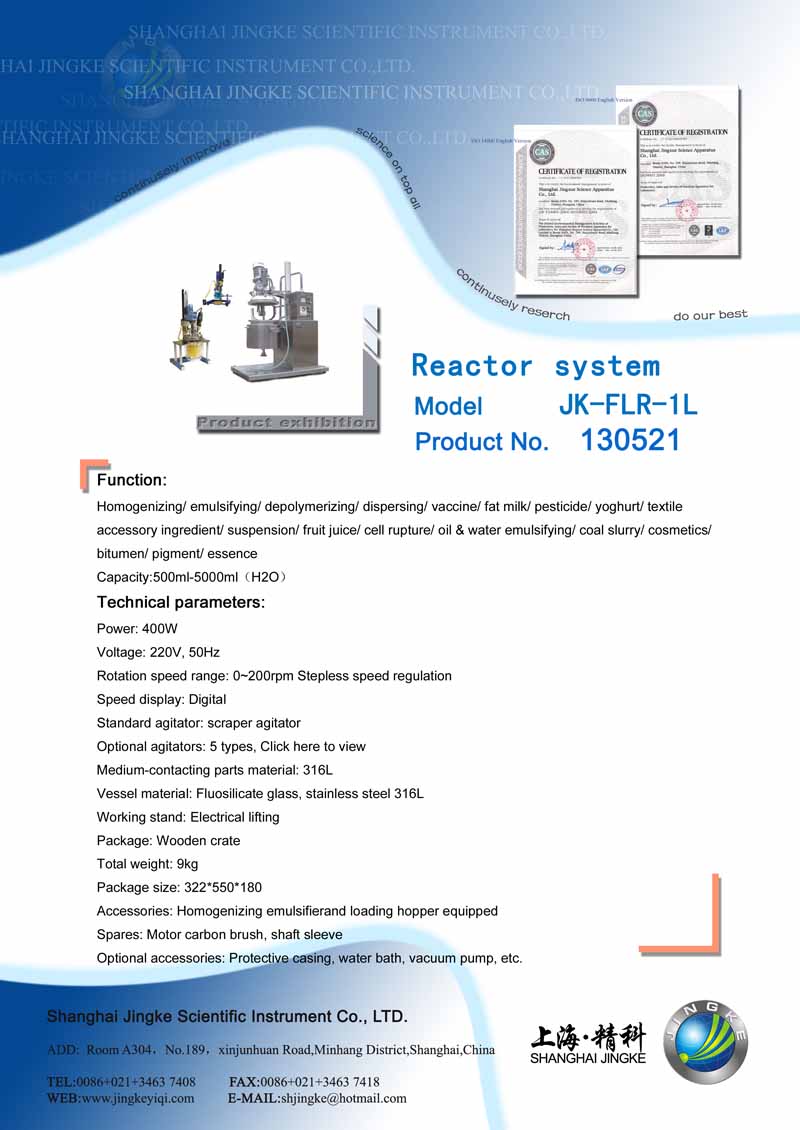

JK-FLR-1L Reactor system
Advantages:
1. Integrated design, improved experimental reproducibility and correctness.
2. Modularized design on the vessel cover, optional vessel cover for secondary development of connecting to various analyzing and testing instruments.
3. Optional various propeller to satisfy different technical requirements.
4. Favorable sealing to satisfy the requirement on vacuum and boosting, etc.
5. The glass vessel facilitates inspecting the reaction process.
6. A discharging valve can be equipped to the bottom of the vessel so that dead corners are eliminated.
7. Torque of the motor is increased by a speed-decreasing module to satisfy a higher viscosity.
8. Modular design, flexible combination.
Cases of application:
1. Experiment of face cream preparation
A perfect cream can be obtained through proportioning, emulsifying, vacuumizing, homogenizing, heat exchanging and cooling according to the production techniques.
2. Drug synthesis
Mix and disperse at a suitable temperature and a suitable pressure, and control the loading rate to obtain the final reactant.
3. Pasteurized processed cheese
Put the cheese into the vessel, heat to liquid state, add in auxiliary materials as per the formula, and evenly disperse them, vacuumize and degas, and then cool down to discharge to final product.
Function:
Homogenizing/ emulsifying/ depolymerizing/ dispersing/ vaccine/ fat milk/ pesticide/ yoghurt/ textile accessory ingredient/ suspension/ fruit juice/ cell rupture/ oil & water emulsifying/ coal slurry/ cosmetics/ bitumen/ pigment/ essence
Capacity:500ml-5000ml（H2O）
Technical parameters:
Power: 400W
Voltage: 220V, 50Hz
Rotation speed range: 0~200rpm Stepless speed regulation
Speed display: Digital
Standard agitator: scraper agitator
Optional agitators: 5 types, Click here to view
Medium-contacting parts material: 316L
Vessel material: Fluosilicate glass, stainless steel 316L
Working stand: Electrical lifting
Package: Wooden crate
Total weight: 9kg
Package size: 322*550*180
Accessories: Homogenizing emulsifierand loading hopper equipped
Spares: Motor carbon brush, shaft sleeve
Optional accessories: Protective casing, water bath, vacuum pump, etc.
|
