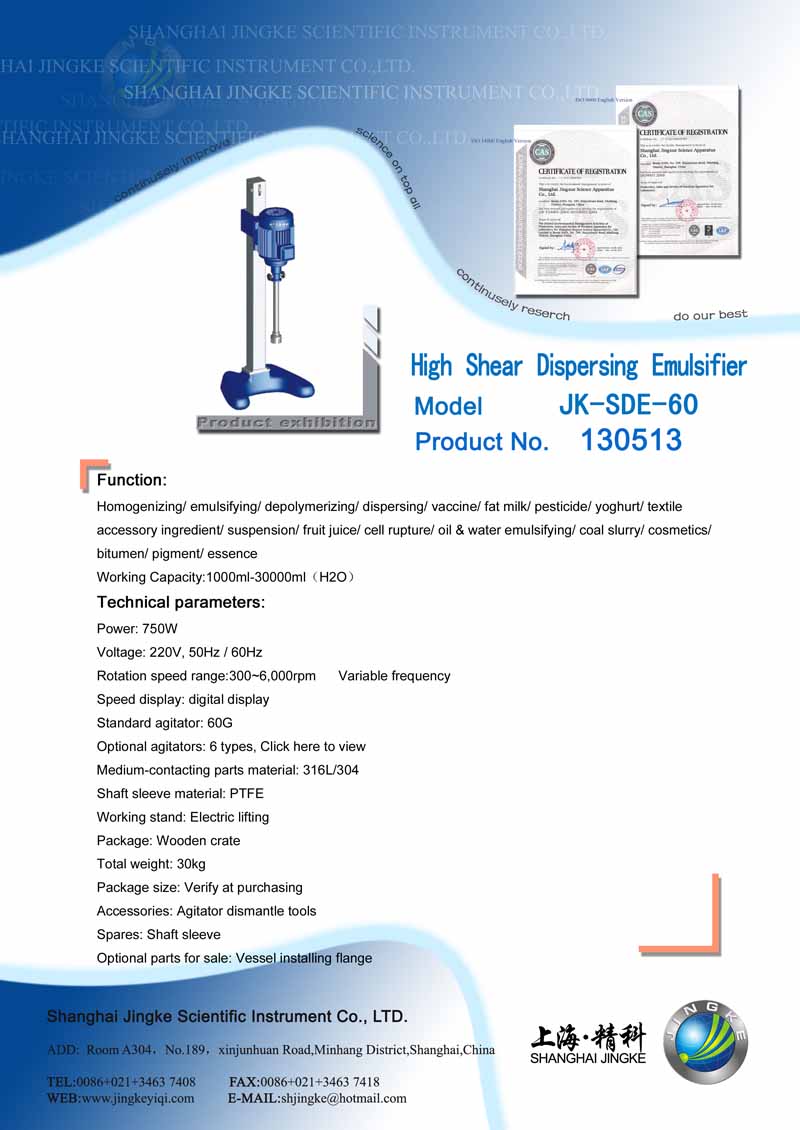

Product name: | JK-SDE-60 High Shear Dispersing Emulsifier |
| Model: | JK-SDE-60 | |
| NO: | 130513 | |
| Price(FOB): | US$2568 Order Order Contract Template | |
| Related Products: | ||
|
JK-HSE-S High Shear Dispersing Emulsifier JK-HSE-II high speed High shear emulsifier JK-HSE-1 High shear emulsifier JK-HSE-90S digital High shear emulsifier |
||
| Detailed |
Advantages:
1. A working capacity of 1L~30L (H2O) specially designed for pilot-plant experiment.
2. By replacing another agitator, the equipment can supply a different function such as Eumix (mixing), Hishear (dispersing, homogenizing, emulsifying), Jetmixers (Jet mixing) or PLM (Powder Liquid Mixing). 3. The equipment is equipped with a high-speed frequency converting motor, and is started up with frequency converting for self-protection, and the Rotation speed can be controlled and displayed. 4. Maximum working duration: 4 hour. 5. Quick coupling dispersing head, easy to be dismantled and replaced. 6. Modular design, flexible combination. Cases of application: 1. Oil & Water emulsifying by a Hishear agitator
Pour the water phase into the Vessel, regulate the Rotation speed to 5,000rpm, and then add the oil phase, make the equipment run for 10 minutes to end the emulsifying process. 2. Xanthate gum dissolving by a Jetmixers agitator Pour the xanthate gum into water, regulate the Rotation speed to 4,500rpm, and make the equipment run for 15 minutes to end the dissolving. 3. Pigment dispersing by an Eumix disc agitator Pour the pigment into water, regulate the Rotation speed to 3,000rpm, and make the equipment run for 15 minutes to end the dispersing. Function:
Homogenizing/ emulsifying/ depolymerizing/ dispersing/ vaccine/ fat milk/ pesticide/ yoghurt/ textile accessory ingredient/ suspension/ fruit juice/ cell rupture/ oil & water emulsifying/ coal slurry/ cosmetics/ bitumen/ pigment/ essence
Working Capacity:1000ml-30000ml（H2O） Technical parameters:
Power: 750W
Voltage: 220V, 50Hz / 60Hz Rotation speed range:300~6,000rpm Variable frequency Speed display: digital display Standard agitator: 60G Optional agitators: 6 types, Click here to view Medium-contacting parts material: 316L/304 Shaft sleeve material: PTFE Working stand: Electric lifting Package: Wooden crate Total weight: 30kg Package size: Verify at purchasing Accessories: Agitator dismantle tools Spares: Shaft sleeve Optional parts for sale: Vessel installing flange |
