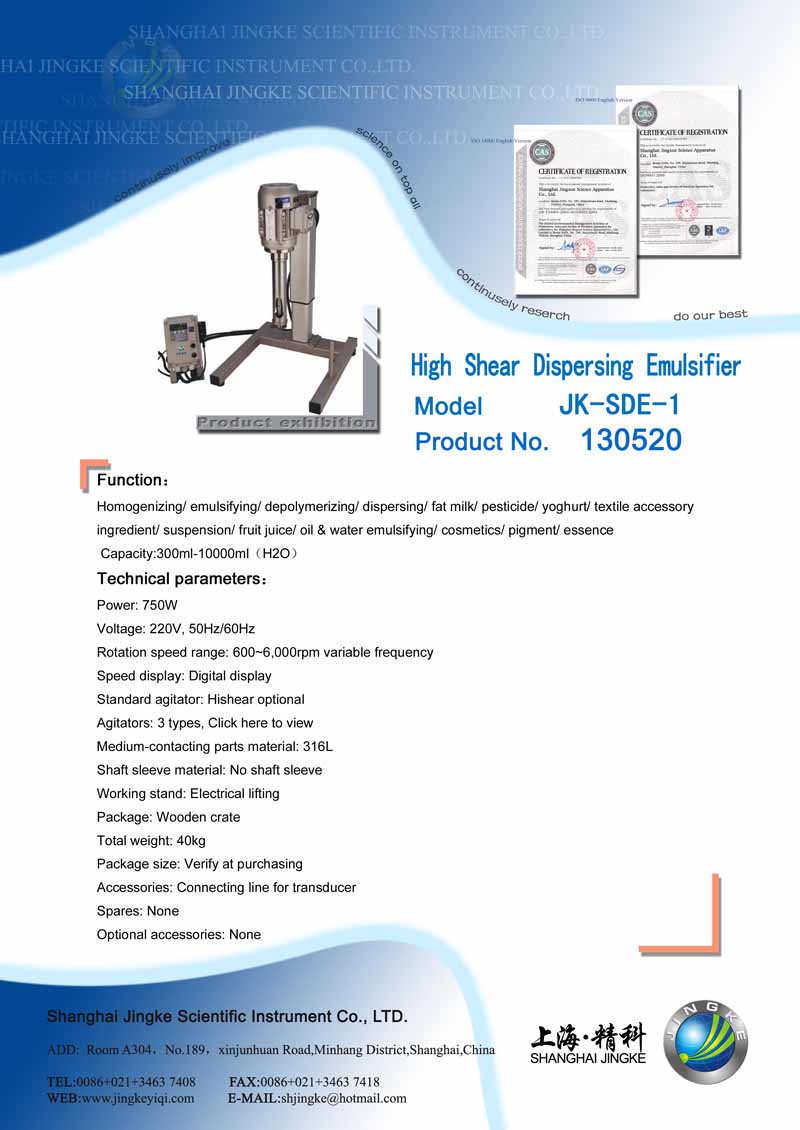

JK-SDE-1 High Shear Dispersing Emulsifier
Advantages：
1. German original main machine, reliable quality.
2. The agitator has no shaft sleeve, and no wearers will drop down.
3. By replacing another agitator, the equipment can realize a different technique such as Eumix (mixing), Hishear (dispersing, homogenizing, emulsifying), or grinding, etc.
4. The equipment is equipped with a high-speed frequency converting motor, and is started up with frequency converting for self-protection, and the rotation speed can be controlled and displayed.
5. Continuous working not influenced by the time.
6. Quick coupling dispersing head, easy to be dismantled and replaced.
7. Modular design, flexible combination.
Cases of application：
1. Oil & Water emulsifying by a Hishear agitator
Pour the water phase into the vessel, regulate the rotation speed to 5,000rpm, and then add the oil phase, make the equipment run for 10 minutes to end the emulsifying process.
2. Printing ink dispersing by a grinding agitator
Put the grinding agitator into the material, add suitable grinding bead, and operating the equipment till the material has been ground to the target fineness.
3. Pigment dispersing by an Eumix fluted disc agitator
Pour the pigment into water, regulate the rotation speed to 3,000rpm, and make the equipment run for 15 minutes to end the dispersing.
Function：
Homogenizing/ emulsifying/ depolymerizing/ dispersing/ fat milk/ pesticide/ yoghurt/ textile accessory ingredient/ suspension/ fruit juice/ oil & water emulsifying/ cosmetics/ pigment/ essence
Capacity:300ml-10000ml（H2O）
Technical parameters：
Power: 750W
Voltage: 220V, 50Hz/60Hz
Rotation speed range: 600~6,000rpm variable frequency
Speed display: Digital display
Standard agitator: Hishear optional
Agitators: 3 types, Click here to view
Medium-contacting parts material: 316L
Shaft sleeve material: No shaft sleeve
Working stand: Electrical lifting
Package: Wooden crate
Total weight: 40kg
Package size: Verify at purchasing
Accessories: Connecting line for transducer
Spares: None
Optional accessories: None
|
