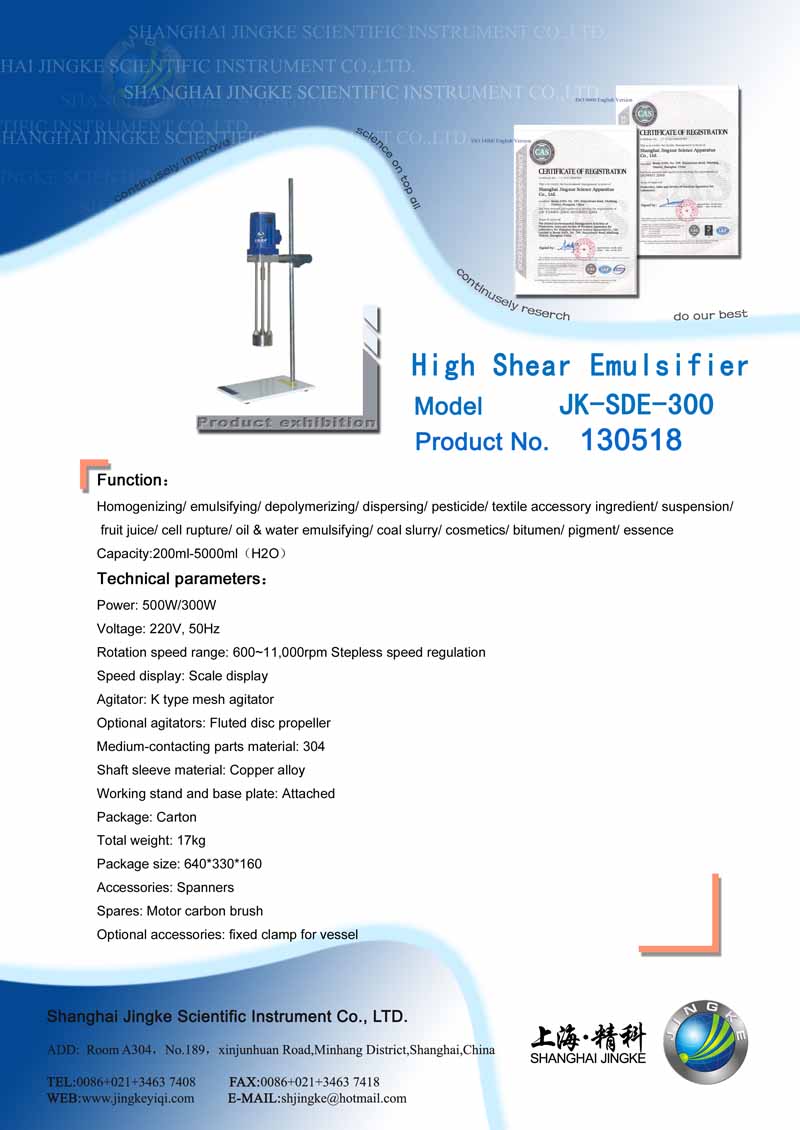

JK-SDE-300 High Shear Emulsifier
Advantages：
1. Economical design, simple and practical, suitable for teaching, common experimenting, and non-sanitary working conditions.
2. Stepless speed regulation, maximum rotation speed: 11,000rpm.
3. Equipped with 2 different dispersing heads for different working capacities.
4. Maximum working duration: 1 hour.
5. Stainless steel dispersing head, repeatedly usable.
6. Quick coupling dispersing head, easy to be dismantled and replaced.
Cases of application：
1. Oil & Water emulsifying
Pour the water phase into the vessel, start up the equipment and regulate the rotation speed to Stage 6 above, and then add the oil phase, make the equipment run for 3 minutes to end the emulsifying process.
2. Bitumen modification emulsifying
FM 300 can resist a high temperature of 200℃, and thus it can be used to treat bitumen and those high temperature materials.
3. White titanium pigment dispersing
Start up the equipment and regulate the rotation speed to Stage 7 above, and disperse for more than 10 minutes.
Function：
Homogenizing/ emulsifying/ depolymerizing/ dispersing/ pesticide/ textile accessory ingredient/ suspension/ fruit juice/ cell rupture/ oil & water emulsifying/ coal slurry/ cosmetics/ bitumen/ pigment/ essence
Capacity:200ml-5000ml（H2O）
Technical parameters：
Power: 500W/300W
Voltage: 220V, 50Hz
Rotation speed range: 600~11,000rpm Stepless speed regulation
Speed display: Scale display
Agitator: K type mesh agitator
Optional agitators: Fluted disc propeller
Medium-contacting parts material: 304
Shaft sleeve material: Copper alloy
Working stand and base plate: Attached
Package: Carton
Total weight: 17kg
Package size: 640*330*160
Accessories: Spanners
Spares: Motor carbon brush
Optional accessories: fixed clamp for vessel
|
