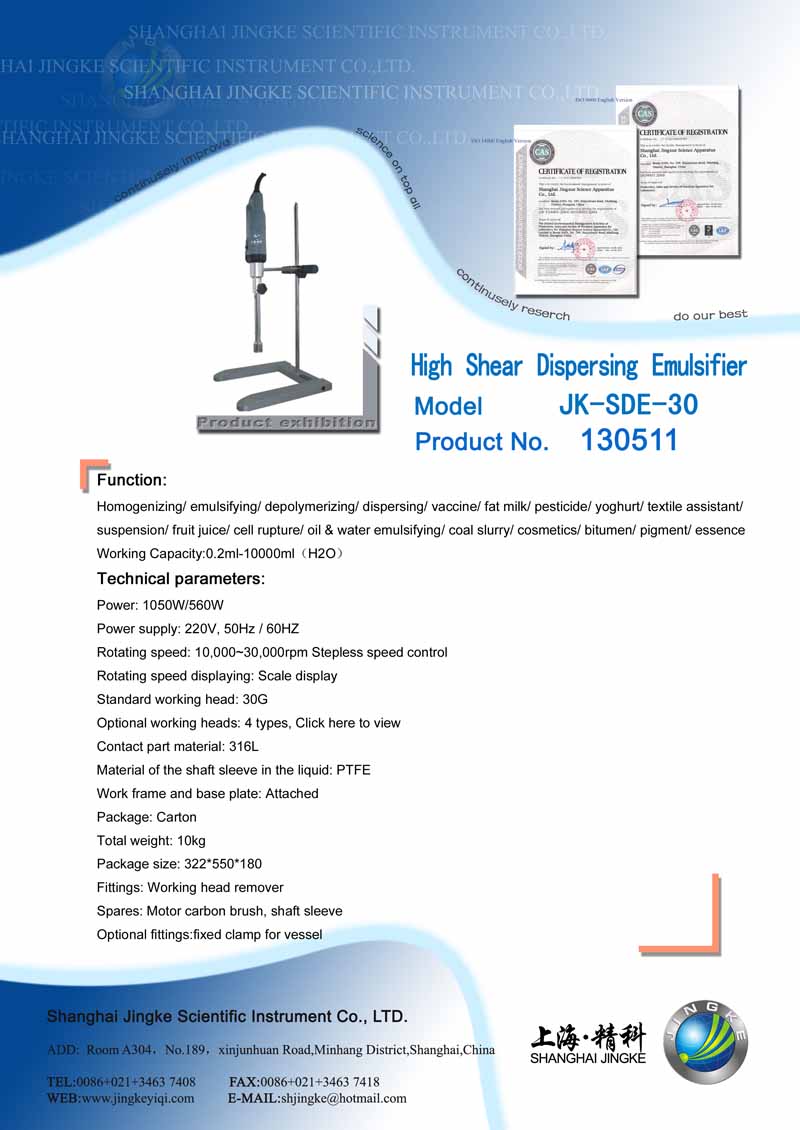

JK-SDE-30 High Shear Dispersing Emulsifier
Advantages:
1. German original motor, long service life and stable operation.
2. Stepless speed control, maximum rotating speed: 28,000rpm, maximum shear linear speed: 27m/s.
3. 4 different dispersing heads for option to satisfy your different working environments (sealed, opened, normal pressure, vacuum).
4. Maximum working duration: 4 hours.
5. Double protective insulation to supply you the highest safety guard.
6. Stainless steel dispersing head, repeatedly usable.
7. Quick coupling dispersing head, easy to be dismantled and replaced.
8. Modular design, flexible combination.
Cases of application:
1. Oil & Water emulsifying
Pour the water phase into the vessel, start up the device and regulate the rotating speed to B stage above, and then add the oil phase, make the device run for 3 minutes to end the emulsifying process.
2. Oil phase dispersing
In the emulsifying process, the oil phase shall be proportioned at first before it is uniformly dispersed, and FA30 can satisfy a small batch fast proportioning.
3. Dispersing pigment in resin
Start up the device and regulate the rotating speed to D stage, and disperse for more than 10 minutes.
Function:
Homogenizing/ emulsifying/ depolymerizing/ dispersing/ vaccine/ fat milk/ pesticide/ yoghurt/ textile assistant/ suspension/ fruit juice/ cell rupture/ oil & water emulsifying/ coal slurry/ cosmetics/ bitumen/ pigment/ essence
Working Capacity:0.2ml-10000ml（H2O）
Technical parameters:
Power: 1050W/560W
Power supply: 220V, 50Hz / 60HZ
Rotating speed: 10,000~30,000rpm Stepless speed control
Rotating speed displaying: Scale display
Standard working head: 30G
Optional working heads: 4 types, Click here to view
Contact part material: 316L
Material of the shaft sleeve in the liquid: PTFE
Work frame and base plate: Attached
Package: Carton
Total weight: 10kg
Package size: 322*550*180
Fittings: Working head remover
Spares: Motor carbon brush, shaft sleeve
Optional fittings:fixed clamp for vessel
|
