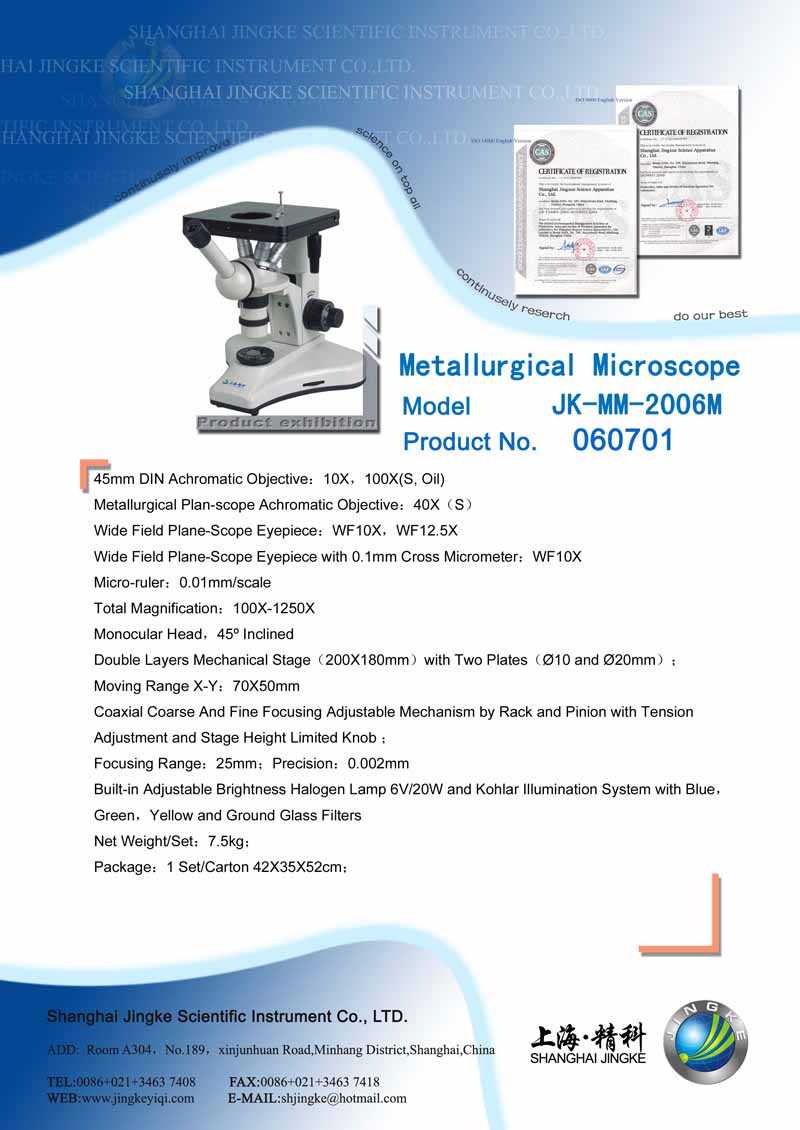

JK-MM-2006M Metallurgical Microscope

45mm DIN Achromatic Objective：10X，100X(S, Oil)
Metallurgical Plan-scope Achromatic Objective：40X（S）
Wide Field Plane-Scope Eyepiece：WF10X，WF12.5X
Wide Field Plane-Scope Eyepiece with 0.1mm Cross Micrometer：WF10X
Micro-ruler：0.01mm/scale
Total Magnification：100X-1250X
Monocular Head，45º Inclined
Double Layers Mechanical Stage（200X180mm）with Two Plates（Ø10 and Ø20mm）；
Moving Range X-Y：70X50mm
Coaxial Coarse And Fine Focusing Adjustable Mechanism by Rack and Pinion with Tension Adjustment and Stage Height Limited Knob ；
Focusing Range：25mm；Precision：0.002mm
Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System with Blue，Green，Yellow and Ground Glass Filters
Net Weight/Set：7.5kg；
Package：1 Set/Carton 42X35X52cm；
