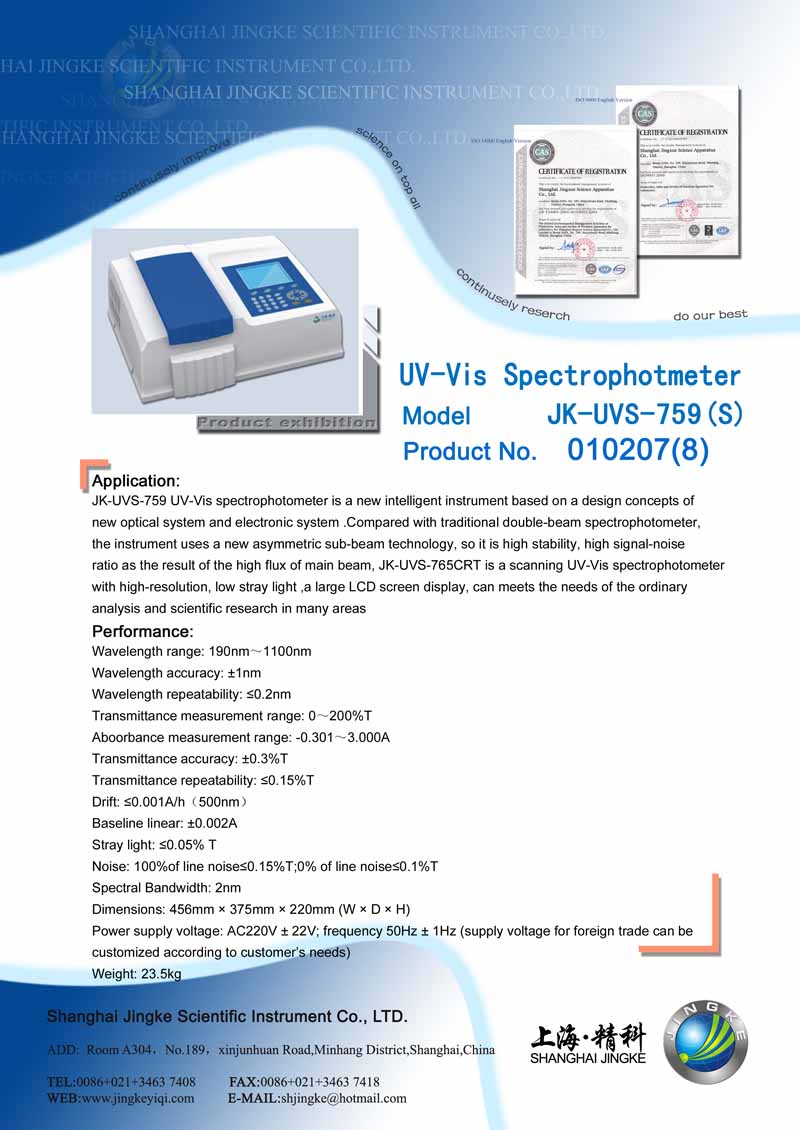

JK-UVS-759 UV-Vis Spectrophotmeter

Application:

JK-UVS-759 UV-Vis spectrophotometer is a new intelligent instrument based on a design concepts of new optical system and electronic system .Compared with traditional double-beam spectrophotometer, the instrument uses a new asymmetric sub-beam technology, so it is high stability, high signal-noise ratio as the result of the high flux of main beam, JK-UVS-765CRT is a scanning UV-Vis spectrophotometer with high-resolution, low stray light ,a large LCD screen display, can meets the needs of the ordinary analysis and scientific research in many areas

Characteristics:

Fully automatic operation

Execllent optical performance

Auto spacious sample chamber

Independent light source chamber

Host control and PC control

Note:UV-759s adds full waveband auto-scan function.based on UV-759 spectrophotometer

Performance:

Wavelength range: 190nm～1100nm
Wavelength accuracy: ±1nm
Wavelength repeatability: ≤0.2nm
Transmittance measurement range: 0～200%T
Aboorbance measurement range: -0.301～3.000A
Transmittance accuracy: ±0.3%T
Transmittance repeatability: ≤0.15%T
Drift: ≤0.001A/h（500nm）
Baseline linear: ±0.002A
Stray light: ≤0.05% T
Noise: 100%of line noise≤0.15%T;0% of line noise≤0.1%T
Spectral Bandwidth: 2nm

Dimensions: 456mm × 375mm × 220mm (W × D × H)
Power supply voltage: AC220V ± 22V; frequency 50Hz ± 1Hz (supply voltage for foreign trade can be customized according to customer’s needs)
Weight: 23.5kg

THIS PRODUCT CAN BE OEM

Has been assessed and registered as meeting the requirements of ISO9001:2008

Has been assessed and registered as meeting the requirements of GB/T24001-2004/ISO14001:2004

China’s quality reliable products

Chinese famous brand.
