Product name: | JK-VS-S22PC Visible Spectrophotometer |
| Model: | JK-VS-S22PC | |
| NO: | 010110 | |
| Price(FOB): | US$671 Order Order Contract Template | |
| Related Products: | ||
|
JK-VS-723N Visiable Spectrophotometer JK-VS-723A Visiable Spectrophotometer JK-VS-7230G Visiable Spectrophotometer JK-VS-S22 and JK-VS-S22PC Visible Spectrophotometer |
||
| Detailed |

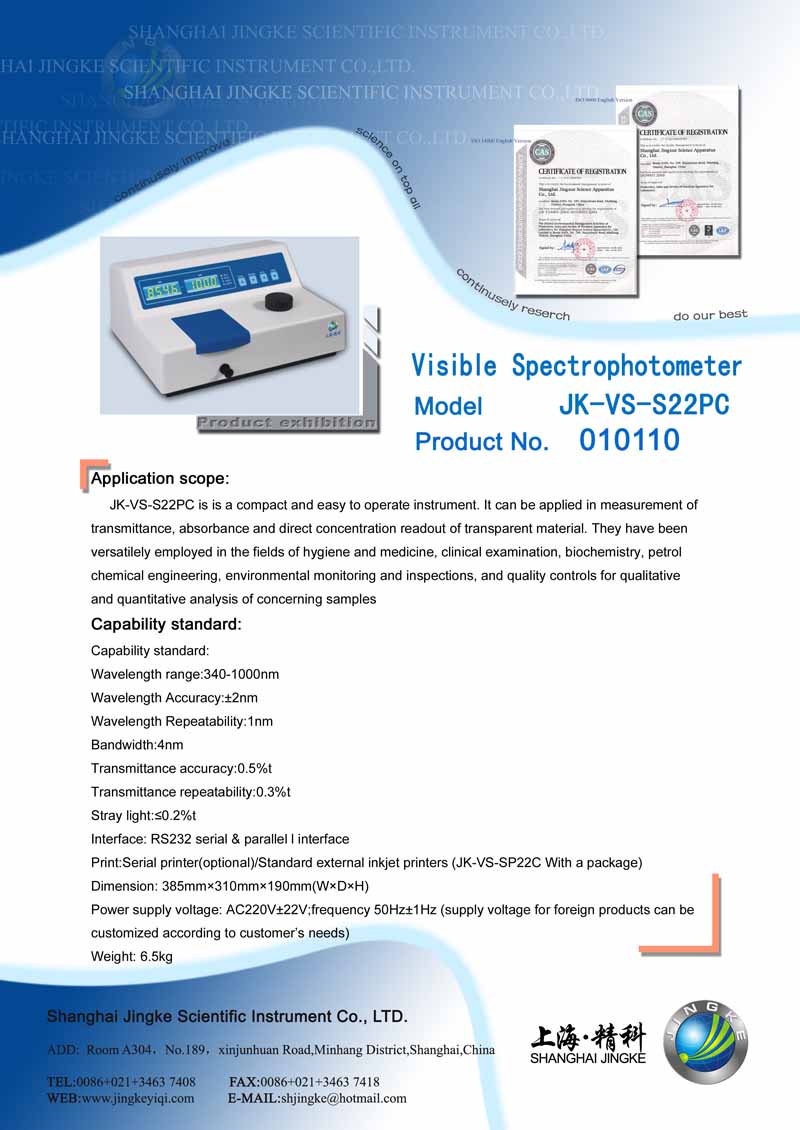

JK-VS-S22 and JK-VS-S22PC Visible Spectrophotometer Application scope:
S22PC is is a compact and easy to operate instrument. It can be applied in measurement of transmittance, absorbance and direct concentration readout of transparent material. They have been versatilely employed in the fields of hygiene and medicine, clinical examination, biochemistry, petrol chemical engineering, environmental monitoring and inspections, and quality controls for qualitative and quantitative analysis of concerning samples
Characteristics:
CT monochromator, precision grating and non-spherical mirror; hybrid optical index better than the original S22 / 722s;
pre-calibrated light source and the spectral energy correction system;
Manually adjust wavelength, computer measurement system, accurate T/A conversion, automatic transfer 0% and 100%, directly read the concentration, concentration set
With a standard parallel printer port with optional external parallel printer; with RS232 serial interface with optional dedicated data-processing software package, when connecting with PC can store,record,transfer data and linear.
4 cuvette rack can be set in the sample room, a 1-5cm light path rectangular cuvette and 5cm cuvette holder is optional.
Capability standard:
Wavelength range:340-1000nm
Wavelength Accuracy:±2nm
Wavelength Repeatability:1nm
Bandwidth:4nm
Transmittance accuracy:0.5%t
Transmittance repeatability:0.3%t
Stray light:≤0.2%t
Interface: RS232 serial & parallel l interface
Print:Serial printer(optional)/Standard external inkjet printers (SP22C With a package)
Dimension: 385mm×310mm×190mm(W×D×H)
Power supply voltage: AC220V±22V;frequency 50Hz±1Hz (supply voltage for foreign products can be customized according to customer’s needs)
Weight: 6.5kg
THIS PRODUCT CAN BE OEM
Has been assessed and registered as meeting the requirements of ISO9001:2008
Has been assessed and registered as meeting the requirements of GB/T24001-2004/ISO14001:2004
China’s quality reliable products
Chinese famous brand.
|
