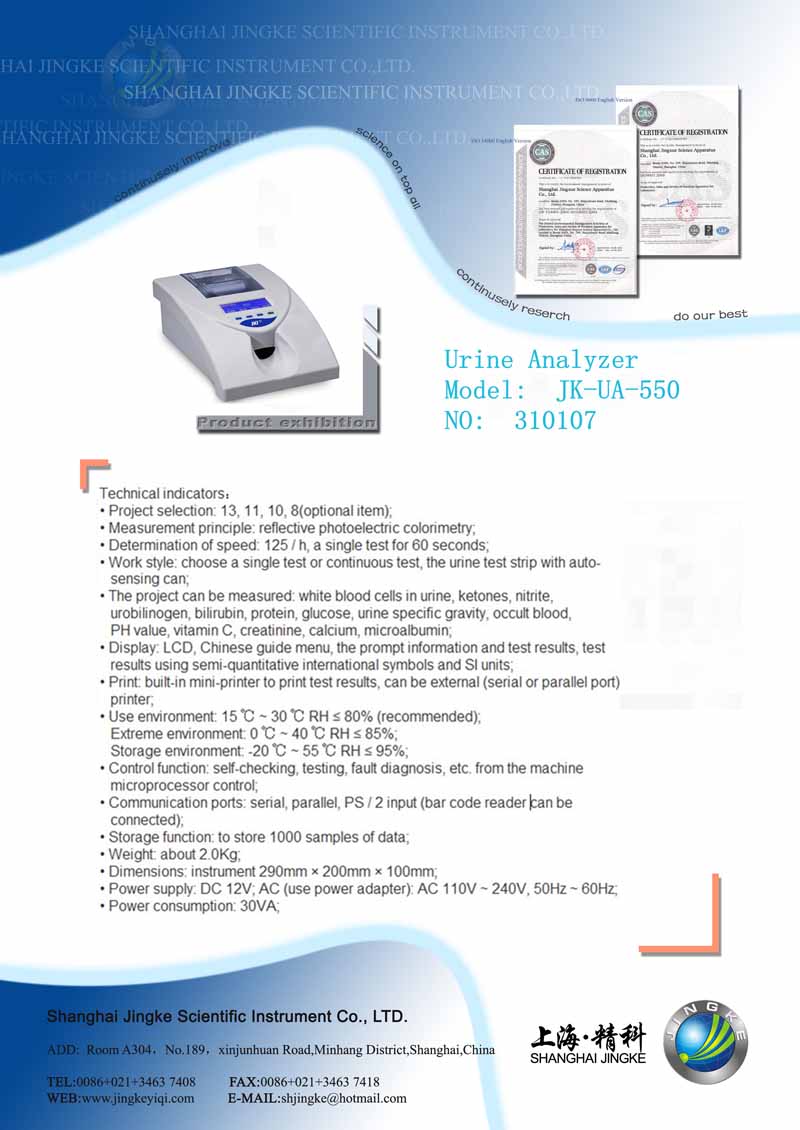

JK-UA-550 Urine Analyzer

Technical indicators：

• Project selection: 13, 11, 10, 8(optional item);

• Measurement principle: reflective photoelectric colorimetry;

• Determination of speed: 125 / h, a single test for 60 seconds;

• Work style: choose a single test or continuous test, the urine test strip with auto-sensing can;

• The project can be measured: white blood cells in urine, ketones, nitrite, urobilinogen, bilirubin, protein, glucose, urine specific gravity, occult blood, PH value, vitamin C, creatinine, calcium, microalbumin;
• Display: LCD, Chinese guide menu, the prompt information and test results, test results using semi-quantitative international symbols and SI units;

• Print: built-in mini-printer to print test results, can be external (serial or parallel port) printer;

• Use environment: 15 ℃ ~ 30 ℃ RH ≤ 80% (recommended);

Extreme environment: 0 ℃ ~ 40 ℃ RH ≤ 85%;

Storage environment: -20 ℃ ~ 55 ℃ RH ≤ 95%;

• Control function: self-checking, testing, fault diagnosis, etc. from the machine microprocessor control;

• Communication ports: serial, parallel, PS / 2 input (bar code reader can be connected);

• Storage function: to store 1000 samples of data;

• Weight: about 2.0Kg;

• Dimensions: instrument 290mm × 200mm × 100mm;

• Power supply: DC 12V; AC (use power adapter): AC 110V ~ 240V, 50Hz ~ 60Hz;

• Power consumption: 30VA;
