Product name: | JK-BPAS-1 Bitumen Pressure Ageing System |
| Model: | JK-BPAS-1 | |
| NO: | 240236 | |
| Price(FOB): | us$29500 Order Order Contract Template | |
| Related Products: | ||
|
JK-DBCP-1D Detection System for Borehole of Concrete Pile JK-EADT-17 Distillation residue of emulsified asphalt tester JK-LWRT-55 Load Wheel Rolling Tester JK-EACT-51 Emulsified Asphalt Consistency Tester |
||
| Detailed |

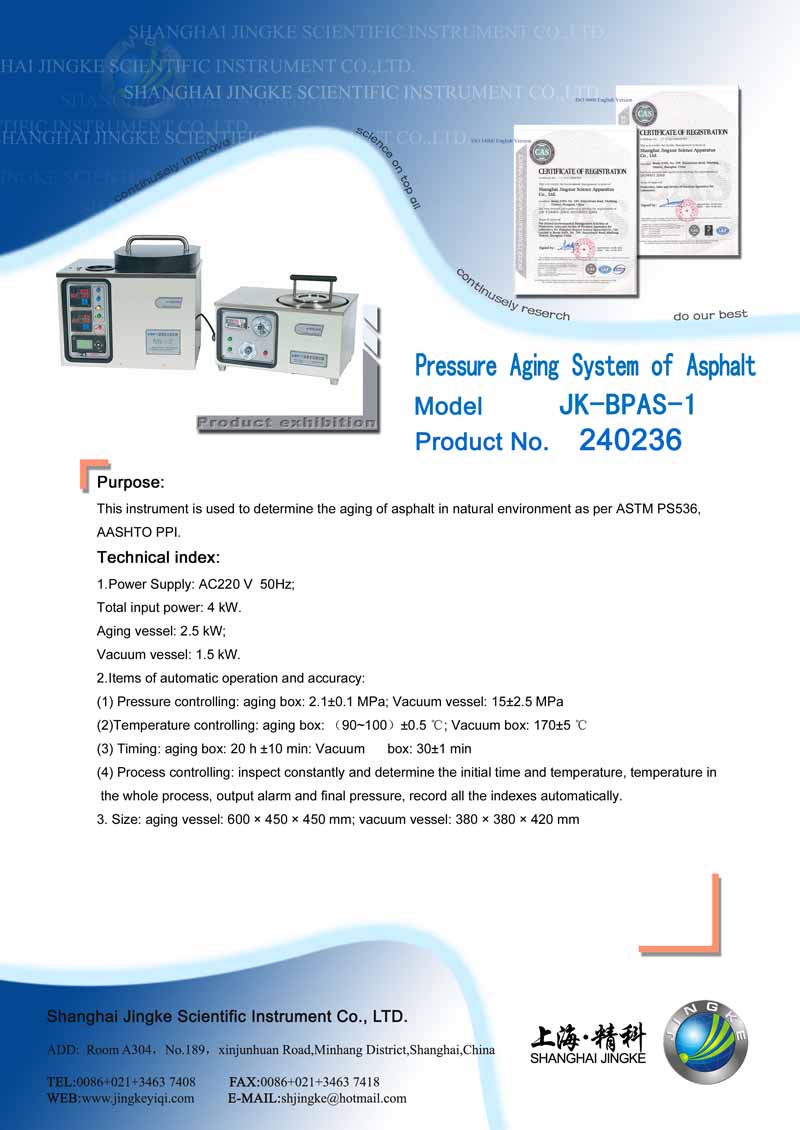

This instrument is used to determine the aging of asphalt in natural environment as per ASTM PS536, AASHTO PPI. Technical index: 1. Power Supply: AC220 V 50Hz; Total input power: 4 kW. Aging vessel: 2.5 kW; Vacuum vessel: 1.5 kW. 2. Items of automatic operation and accuracy: (1) Pressure controlling: aging box: 2.1±0.1 MPa; Vacuum vessel: 15±2.5 MPa (2)Temperature controlling: aging box: （90~100）± (3) Timing: aging box: 20 h ±10 min: Vacuum box: 30±1 min (4) Process controlling: inspect constantly and determine the initial time and temperature, temperature in the whole process, output alarm and final pressure, record all the indexes automatically. 3. Size: aging vessel: 600 × 450 ×
|
