Product name: | JK-ATFO-09 Asphalt Thin Film Oven |
| Model: | JK-ATFO-09 | |
| NO: | 240220 | |
| Price(FOB): | us$3250 Order Order Contract Template | |
| Related Products: | ||
|
JK-DBCP-1D Detection System for Borehole of Concrete Pile JK-EADT-17 Distillation residue of emulsified asphalt tester JK-LWRT-55 Load Wheel Rolling Tester JK-EACT-51 Emulsified Asphalt Consistency Tester |
||
| Detailed |

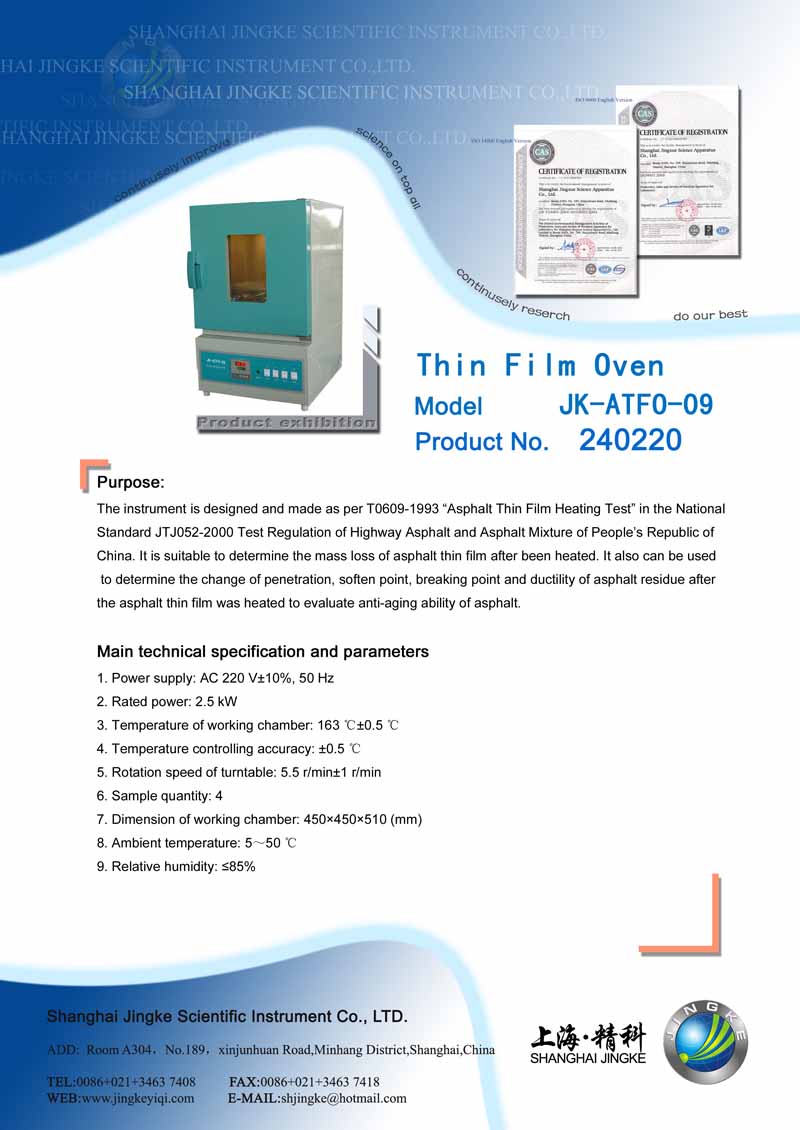

The instrument is designed and made as per T0609-1993 “Asphalt Thin Film Heating Test” in the National Standard JTJ052-2000 Test Regulation of Highway Asphalt and Asphalt Mixture of People’s Republic of Main technical specification and parameters 1. Power supply: AC 220 V±10%, 50 Hz 2. Rated power: 2.5 kW 3. Temperature of working chamber: 4. Temperature controlling accuracy: ± 5. Rotation speed of turntable: 5.5 r/min±1 r/min 6. Sample quantity: 4 7. Dimension of working chamber: 450×450×510 (mm) 8. Ambient temperature: 5～ 9. Relative humidity: ≤85%
|
