Product name: | JK-PTM-1G Penetrometer |
Model: | JK-PTM-1G | |
NO: | 240215 | |
Price(FOB): | us$11250 Order Order Contract Template | |
Related Products: | ||
JK-DBCP-1D Detection System for Borehole of Concrete Pile JK-EADT-17 Distillation residue of emulsified asphalt tester JK-LWRT-55 Load Wheel Rolling Tester JK-EACT-51 Emulsified Asphalt Consistency Tester |
Detailed |

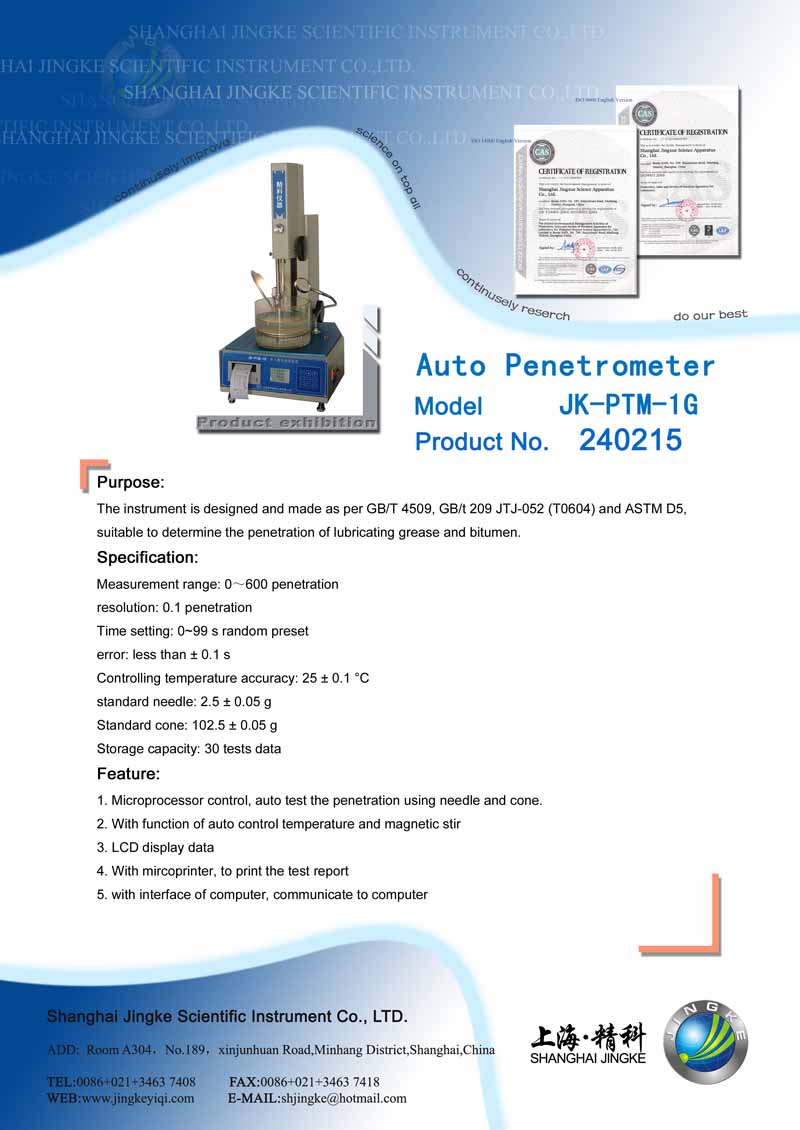

The instrument is designed and made as per GB/T 4509, GB/t 209 JTJ-052 (T0604) and ASTM D5, suitable to determine the penetration of lubricating grease and bitumen. Specification: Measurement range: 0~600 penetration resolution: 0.1 penetration Time setting: 0~99 s random preset error: less than ± 0.1 s Controlling temperature accuracy: 25 ± standard needle: 2.5 ± Standard cone: 102.5 ± Storage capacity: 30 tests data Feature: 1. Microprocessor control, auto test the penetration using needle and cone. 2. With function of auto control temperature and magnetic stir 3. LCD display data 4. With mircoprinter, to print the test report 5. with interface of computer, communicate to computer
|
