Product name: | JK-DT-08F Ductility Tester |
| Model: | JK-DT-08F | |
| NO: | 240209 | |
| Price(FOB): | us$14500 Order Order Contract Template | |
| Related Products: | ||
|
JK-DBCP-1D Detection System for Borehole of Concrete Pile JK-EADT-17 Distillation residue of emulsified asphalt tester JK-LWRT-55 Load Wheel Rolling Tester JK-EACT-51 Emulsified Asphalt Consistency Tester |
||
| Detailed |

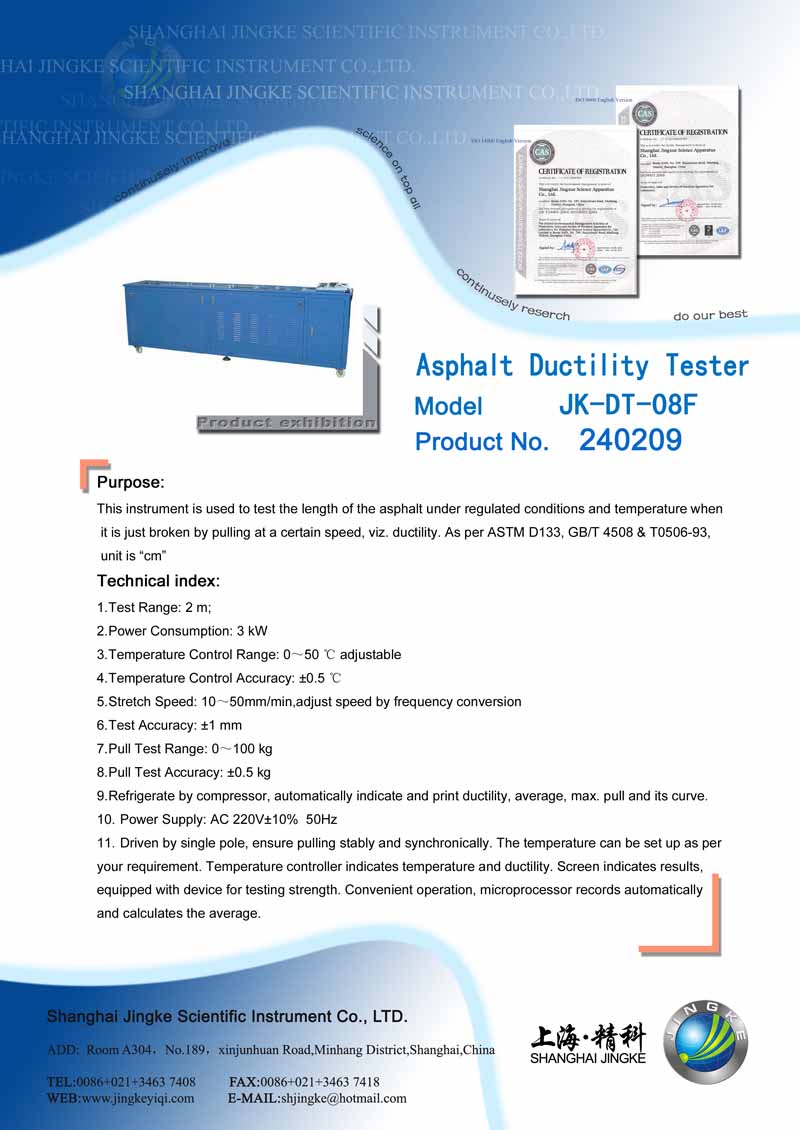

This instrument is used to test the length of the asphalt under regulated conditions and temperature when it is just broken by pulling at a certain speed, viz. ductility. As per ASTM D133, GB/T 4508 & T0506-93, unit is “cm” Technical index: 1. 2. Power Consumption: 3 kW 3. Temperature Control Range: 0～ 4. Temperature Control Accuracy: ± 5. Stretch Speed: 10～ 6. Test Accuracy: ± 7. Pull Test Range: 0～ 8. Pull Test Accuracy: ± 9. Refrigerate by compressor, automatically indicate and print ductility, average, max. pull and its curve. 10. Power Supply: AC 220V±10% 50Hz 11. Driven by single pole, ensure pulling stably and synchronically. The temperature can be set up as per your requirement. Temperature controller indicates temperature and ductility. Screen indicates results, equipped with device for testing strength. Convenient operation, microprocessor records automatically and calculates the average.
|
