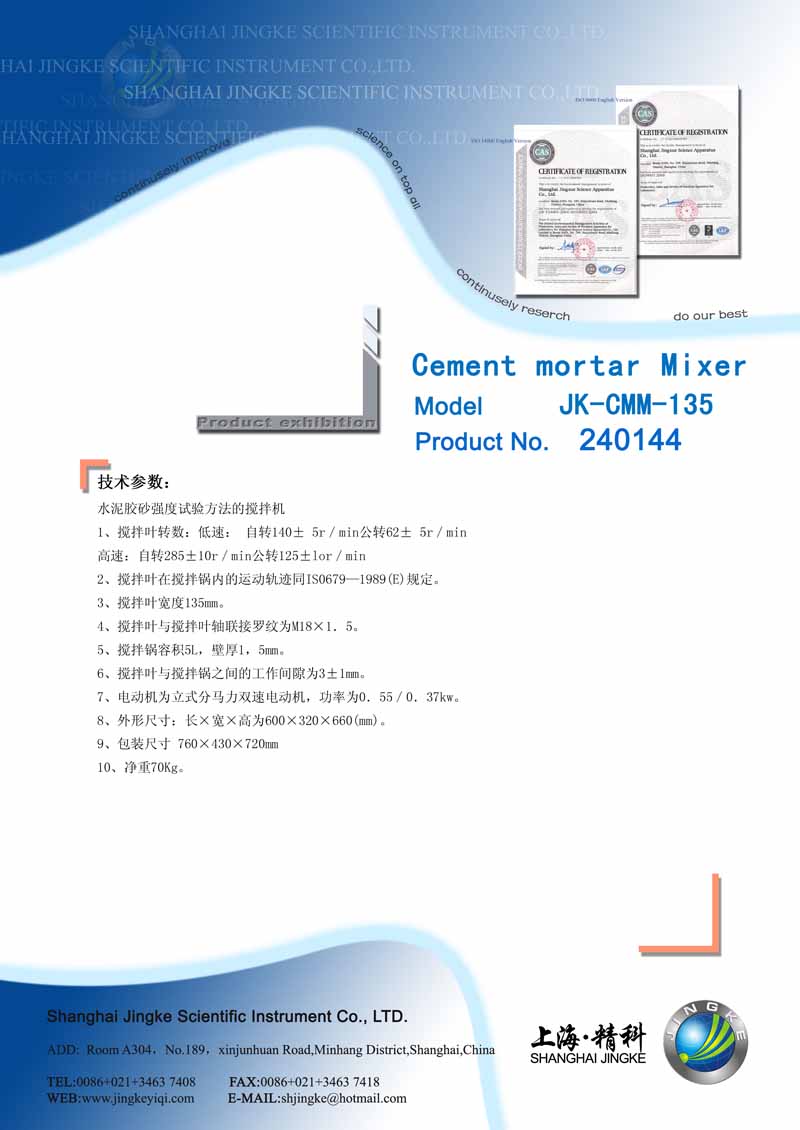

The mixer can measure the cement mortar strength

1,speed of the stirring impeller: low speed: rotation 140 ± 5r/min revolution 62 ± 5r/min

high speed:rotation285±10r／minrevolution 125±lor／min

2,movement locus of stirring impeller can meet the requirments of  IS0679—1989(E)

3, Width of stirring impeller135mm

4,rib connecting stirring impeller and stirring impeller axle M18×1．5

5,Capacity of agitated kettle 5L, wall thickness 1，5mm。

6,working clearance between the stirring impeller and agitated kettle3±1mm。

7,Vertical fractional horsepower two-speed motor,power 0．55／0．37kw

8,contour dimension: length×width×height600×320×660(mm)。

9,package size 760×430×720mm

10,Net weight: 70Kg
