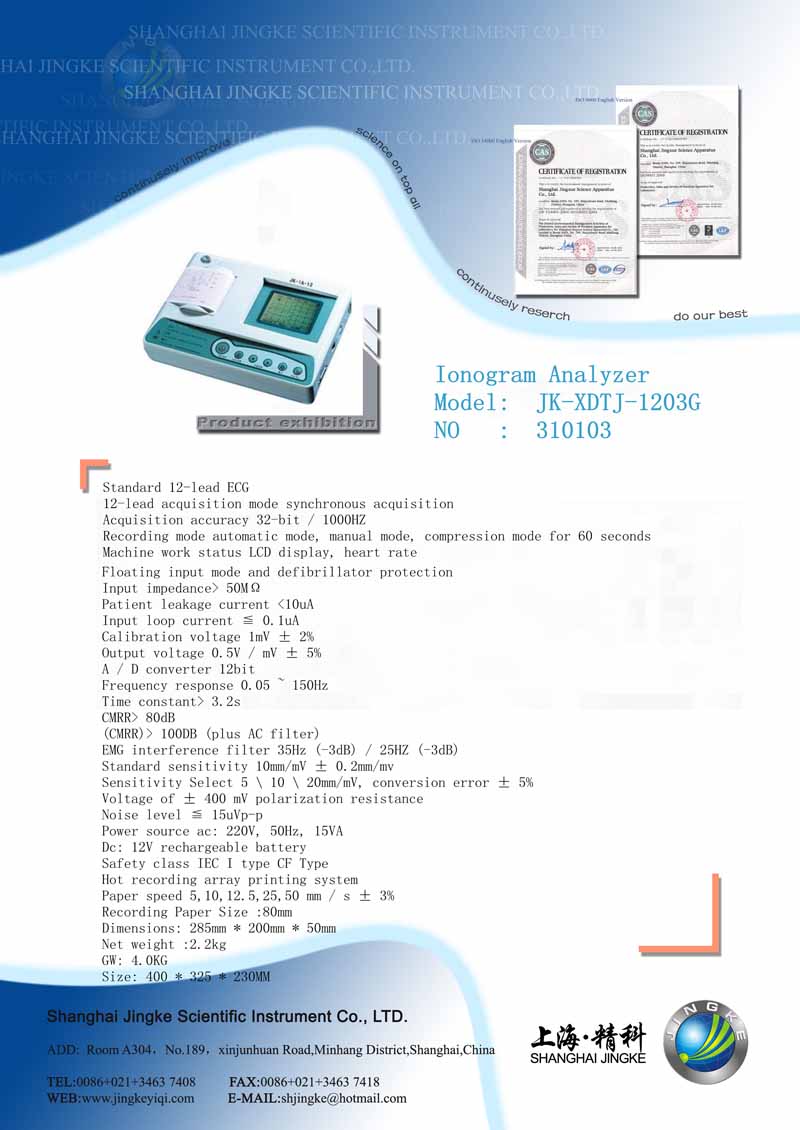

Product name: | JK-XDTJ-1203G Ionogram Analyzer |
| Model: | JK-XDTJ-1203G | |
| NO: | 310103 | |
| Price(FOB): | US$550 Order Order Contract Template | |
| Related Products: | ||
|
JK-HTS-A Head Three Stethoscope JK-MS-1005 Multifunction Stethoscope JK-ABA-17 Automatic Biochemical Analyzer JK-UTS-1VP Visual Urine Test Strip |
||
| Detailed |
JK-XDTJ-1203G Ionogram Analyzer Standard 12-lead ECG 12-lead acquisition mode synchronous acquisition Acquisition accuracy 32-bit / 1000HZ Recording mode automatic mode, manual mode, compression mode for 60 seconds Machine work status LCD display, heart rate Floating input mode and defibrillator protection Input impedance> 50MΩ Patient leakage current <10uA Input loop current ≦ 0.1uA Calibration voltage 1mV ± 2% Output voltage 0.5V / mV ± 5% A / D converter 12bit Frequency response 0.05 ~ 150Hz Time constant> 3.2s CMRR> 80dB (CMRR)> 100DB (plus AC filter) EMG interference filter 35Hz (-3dB) / 25HZ (-3dB) Standard sensitivity 10mm/mV ± 0.2mm/mv Sensitivity Select 5 \ 10 \ 20mm/mV, conversion error ± 5% Voltage of ± 400 mV polarization resistance Noise level ≦ 15uVp-p Power source ac: 220V, 50Hz, 15VA Dc: 12V rechargeable battery Safety class IEC I type CF Type Hot recording array printing system Paper speed 5,10,12.5,25,50 mm / s ± 3% Recording Paper Size :80mm Dimensions: 285mm * 200mm * 50mm Net weight :2.2kg GW: 4.0KG Size: 400 * 325 * 230MM
|
