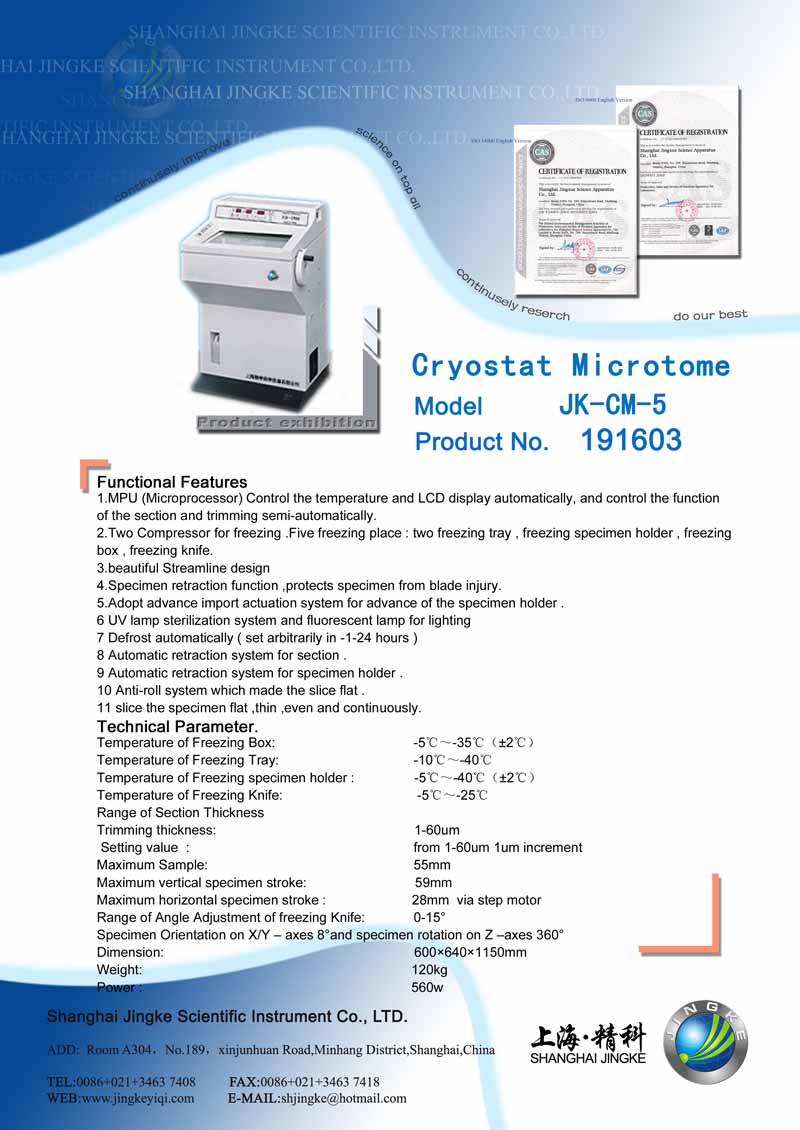

Functional Features

1.MPU (Microprocessor) Control the temperature and LCD display automatically, and control the function of the section and trimming semi-automatically.

2.Two Compressor for freezing .Five freezing place : two freezing tray , freezing specimen holder , freezing box , freezing knife.

3.beautiful Streamline design

4.Specimen retraction function ,protects specimen from blade injury.

5.Adopt advance import actuation system for advance of the specimen holder .

6 UV lamp sterilization system and fluorescent lamp for lighting

7 Defrost automatically ( set arbitrarily in -1-24 hours )

8 Automatic retraction system for section .

9 Automatic retraction system for specimen holder .

10 Anti-roll system which made the slice flat .

11 slice the specimen flat ,thin ,even and continuously.

Technical Parameter.

Temperature of Freezing Box:                 -5℃～-35℃（±2℃）

Temperature of Freezing Tray:                -10℃～-40℃

Temperature of Freezing specimen holder :    -5℃～-40℃（±2℃）

Temperature of Freezing Knife:               -5℃～-25℃

Range of Section Thickness

Trimming thickness:                   1-60um

 Setting value  :  from 1-60um 1um increment

Maximum Sample:                           55mm

Maximum vertical specimen stroke:59mm

Maximum horizontal specimen stroke :28mm  via step motor

Range of Angle Adjustment of freezing Knife:       0-15°

Specimen Orientation on X/Y – axes 8°and specimen rotation on Z –axes 360°

Dimension: 600×640×1150mm

Weight: 120kg

Power : 560w
