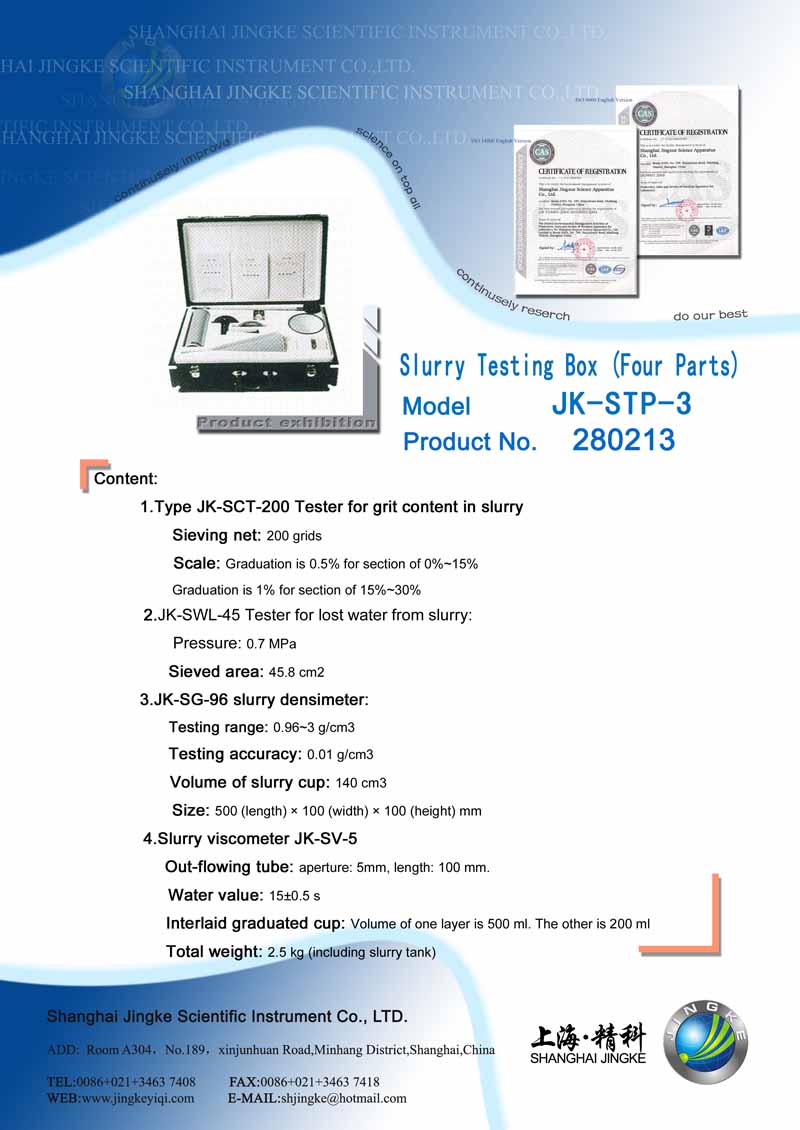

Product name: | JK-STP-3 Slurry Testing Box (Four Parts) |
| Model: | JK-STP-3 | |
| NO: | 280213 | |
| Price(FOB): | us$363 Order Order Contract Template | |
| Related Products: | ||
|
JK-STP-4 Slurry Testing Box (Four Parts) JK-SWL-45 Slurry Loss Water Tester JK-SV-5 Slurry Viscometer JK-SG-96 Slurry Densimeter |
||
| Detailed |
Content:
1. Type JK-SCT-200 Tester for grit content in slurry
Sieving net: 200 grids
Scale: Graduation is 0.5% for section of 0%~15%
Graduation is 1% for section of 15%~30%
2. JK-SWL-45 Tester for lost water from slurry:
Pressure: 0.7 MPa
Sieved area: 45.8 cm2
3. JK-SG-96 slurry densimeter:
Testing range: 0.96~3 g/cm3
Testing accuracy: 0.01 g/cm3
Volume of slurry cup: 140 cm3
Size: 500 (length) × 100 (width) × 100 (height) mm
4. Slurry viscometer JK-SV-5
Out-flowing tube: aperture: 5mm, length: 100 mm.
Water value: 15±0.5 s
Interlaid graduated cup: Volume of one layer is 500 ml. The other is 200 ml
Total weight: 2.5 kg (including slurry tank)
|
