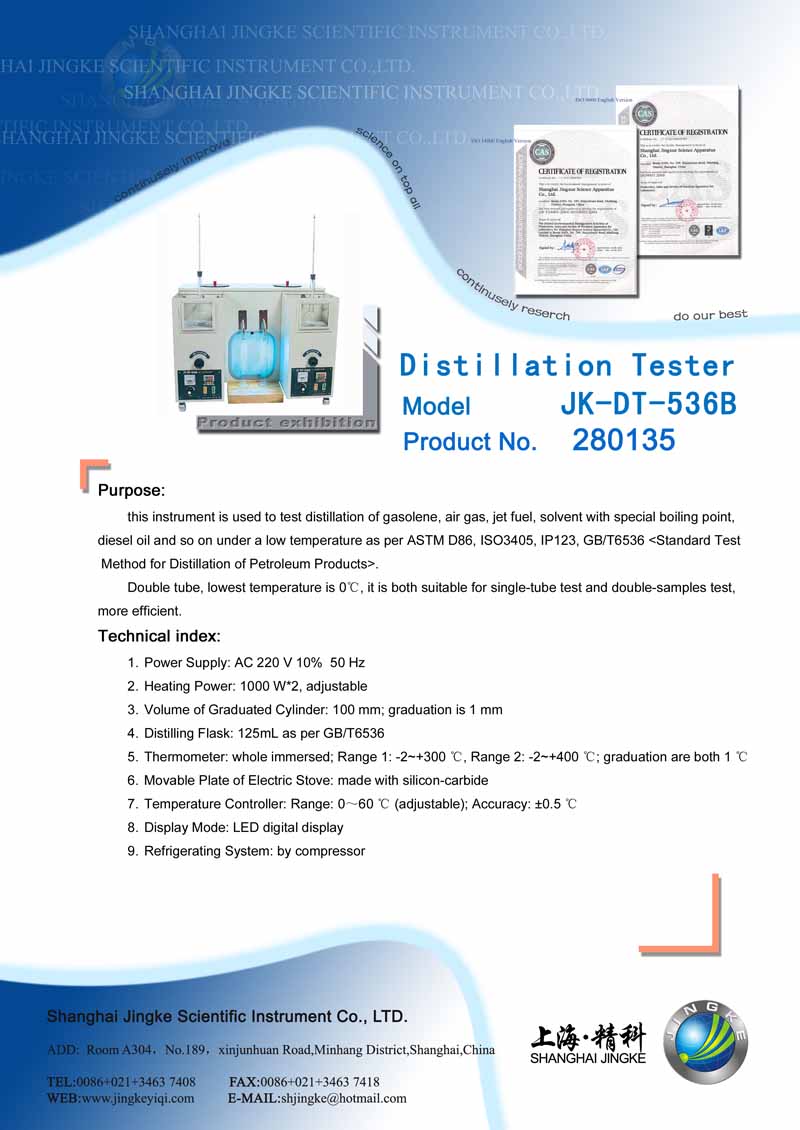

JK-DT-536B Distillation Tester  (Low Temperature Double-units)

Purpose:

this instrument is used to test distillation of gasolene, air gas, jet fuel, solvent with special boiling point, diesel oil and so on under a low temperature as per ASTM D86, ISO3405, IP123, GB/T6536 <Standard Test Method for Distillation of Petroleum Products>.

Double tube, lowest temperature is 0℃, it is both suitable for single-tube test and double-samples test, more efficient.

Technical index:

1.      Power Supply: AC 220 V 10%  50 Hz

2.      Heating Power: 1000 W*2, adjustable

3.      Volume of Graduated Cylinder: 100 mm; graduation is 1 mm

4.      Distilling Flask: 125mL as per GB/T6536

5.      Thermometer: whole immersed; Range 1: -2~+300 ℃, Range 2: -2~+400 ℃; graduation are both 1 ℃

6.      Movable Plate of Electric Stove: made with silicon-carbide

7.      Temperature Controller: Range: 0～60 ℃ (adjustable); Accuracy: ±0.5 ℃

8.      Display Mode: LED digital display

9.      Refrigerating System: by compressor
