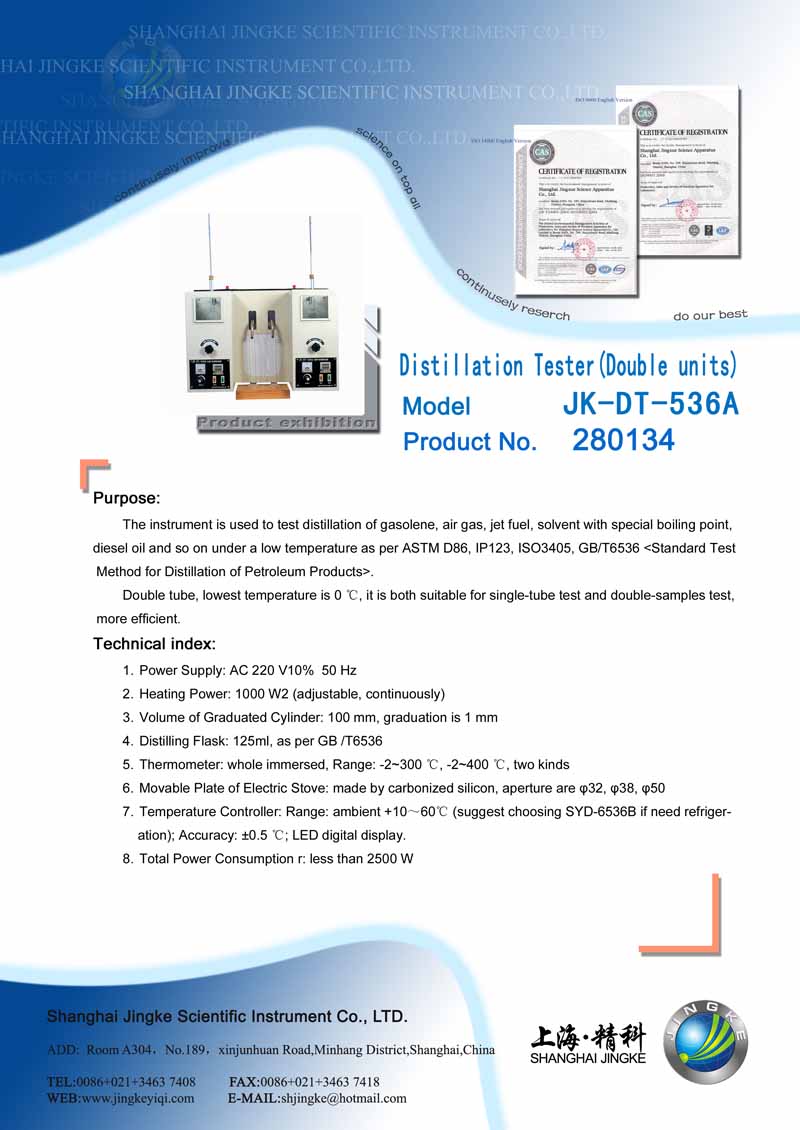

JK-DT-536A Distillation Tester (Double units)

Purpose:

The instrument is used to test distillation of gasolene, air gas, jet fuel, solvent with special boiling point, diesel oil and so on under a low temperature as per ASTM D86, IP123, ISO3405, GB/T6536 <Standard Test Method for Distillation of Petroleum Products>.

Double tube, lowest temperature is 0 ℃, it is both suitable for single-tube test and double-samples test, more efficient.

Technical index:

1.               Power Supply: AC 220 V10%  50 Hz

2.               Heating Power: 1000 W2 (adjustable, continuously)

3.               Volume of Graduated Cylinder: 100 mm, graduation is 1 mm

4.               Distilling Flask: 125ml, as per GB /T6536

5.               Thermometer: whole immersed, Range: -2~300 ℃, -2~400 ℃, two kinds

6.               Movable Plate of Electric Stove: made by carbonized silicon, aperture are φ32, φ38, φ50

7.               Temperature Controller: Range: ambient +10～60℃ (suggest choosing SYD-6536B if need refrigeration); Accuracy: ±0.5 ℃; LED digital display.

8.               Total Power Consumption r: less than 2500 W
