Product name: | JK-FD-1 Freeze Drier |
| Model: | JK-FD-1 | |
| NO: | 190701 | |
| Price(FOB): | us$4983 Order Order Contract Template | |
| Related Products: | ||
|
JK-FD-2 Freeze Drier JK-FD-2 Freeze Drier JK-FD-1 Freeze Drier |
||
| Detailed |

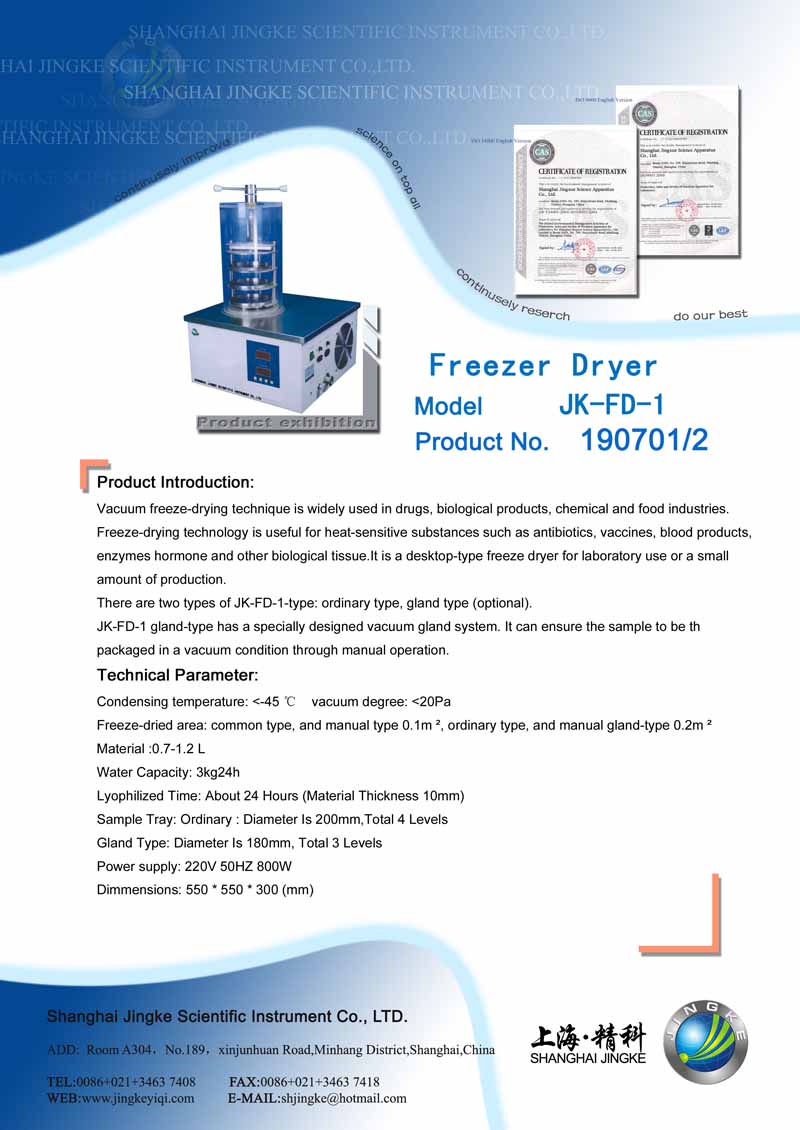

Vacuum freeze-drying technique is widely used in drugs, biological products, chemical and food industries. Freeze-drying technology is useful for heat-sensitive substances such as antibiotics, vaccines, blood products, enzymes hormone and other biological tissue.It is a desktop-type freeze dryer for laboratory use or a small amount of production. There are two types of JK-FD-1-type: ordinary type, gland type (optional). JK-FD-1 gland-type has a specially designed vacuum gland system. It can ensure the sample to be th packaged in a vacuum condition through manual operation. Condensing temperature: < Freeze-dried area: common type, and manual type Material :0.7-1.2 L Water Capacity: 3kg24h Lyophilized Time: About 24 Hours (Material Thickness 10mm) Sample Tray: Ordinary : Diameter Is 200mm,Total 4 Levels Gland Type: Diameter Is 180mm, Total 3 Levels Power supply: 220V 50HZ 800W Dimmensions: 550 * 550 * 300 (mm)
|
