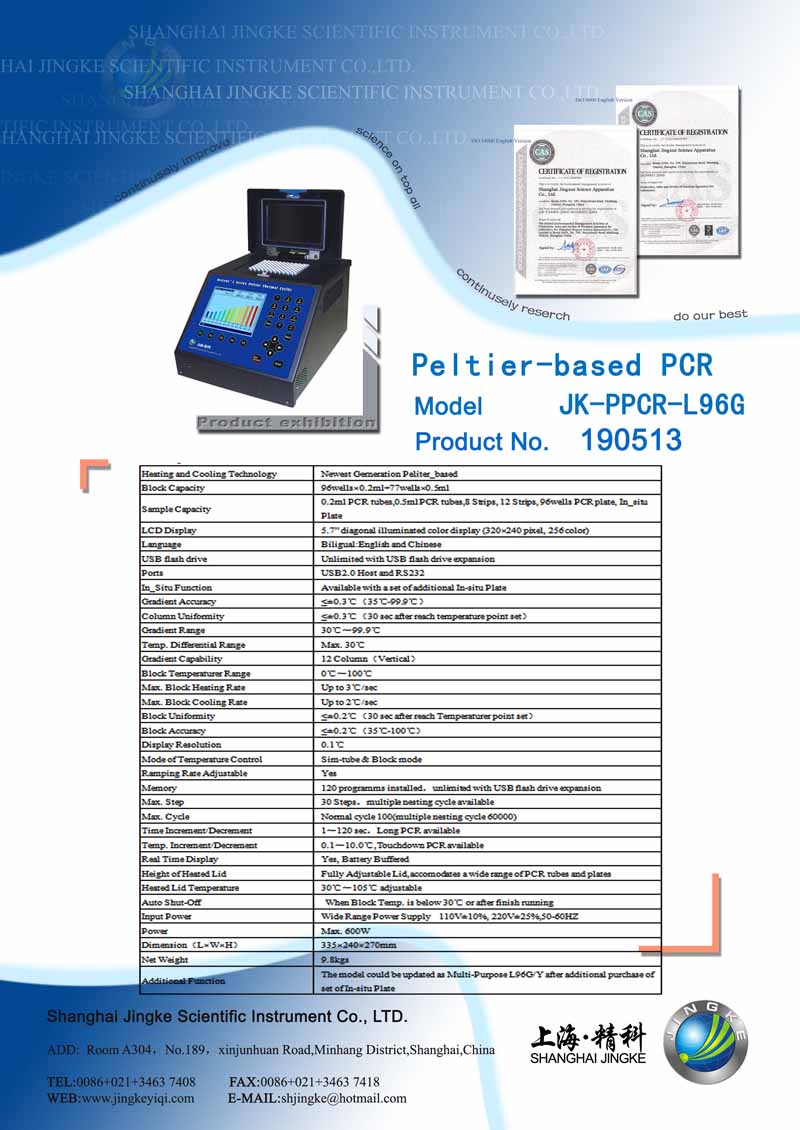

| Detailed |
| |
|
Heating and Cooling Technology
|
Newest Gerneration Peliter_based
|
|
Block Capacity
|
96wells×0.2ml+77wells×0.5ml
|
|
Sample Capacity
|
0.2ml PCR tubes,0.5ml PCR tubes,8 Strips, 12 Strips, 96wells PCR plate, In_situ Plate
|
|
LCD Display
|
5.7” diagonal illuminated color display (320×240 pixel, 256 color)
|
|
Language
|
Biligual:English and Chinese
|
|
USB flash drive
|
Unlimited with USB flash drive expansion
|
|
Ports
|
USB2.0 Host and RS232
|
|
In_Situ Function
|
Available with a set of additional In-situ Plate
|
|
Gradient Accuracy
|
≤±0.3℃（35℃-99.9℃）
|
|
Column Uniformity
|
≤±0.3℃（30 sec after reach temperature point set）
|
|
Gradient Range
|
30℃～99.9℃
|
|
Temp. Differential Range
|
Max. 30℃
|
|
Gradient Capability
|
12 Column（Vertical）
|
|
Block Temperaturer Range
|
0℃～100℃
|
|
Max. Block Heating Rate
|
Up to 3℃/sec
|
|
Max. Block Cooling Rate
|
Up to 2℃/sec
|
|
Block Uniformity
|
≤±0.2℃（30 sec after reach Temperaturer point set）
|
|
Block Accuracy
|
≤±0.2℃（35℃-100℃）
|
|
Display Resolution
|
0.1℃
|
|
Mode of Temperature Control
|
Sim-tube & Block mode
|
|
Ramping Rate Adjustable
|
Yes
|
|
Memory
|
120 programms installed，unlimited with USB flash drive expansion
|
|
Max. Step
|
30 Steps，multiple nesting cycle available
|
|
Max. Cycle
|
Normal cycle 100(multiple nesting cycle 60000)
|
|
Time Increment/Decrement
|
1～120 sec，Long PCR available
|
|
Temp. Increment/Decrement
|
0.1～10.0℃,Touchdown PCR available
|
|
Auto Pause
|
Yes
|
|
Auto Restart
|
Yes
|
|
Hold at 4℃
|
Yes, Forever
|
|
Running Time Display
|
Yes
|
|
Real Time Display
|
Yes, Battery Buffered
|
|
Height of Heated Lid
|
Fully Adjustable Lid,accomodates a wide range of PCR tubes and plates
|
|
Heated Lid Temperature
|
30℃～105℃ adjustable
|
|
Auto Shut-Off
|
When Block Temp. is below 30℃ or after finish running
|
|
Input Power
|
Wide Range Power Supply 110V±10%, 220V±25%,50-60HZ
|
|
Power
|
Max. 600W
|
|
Dimension（L×W×H）
|
335×240×270mm
|
|
Net Weight
|
9.8kgs
|
|
Additional Function
|
The model could be updated as Multi-Purpose L96G/Y after additional purchase of set of In-situ Plate
|
|
