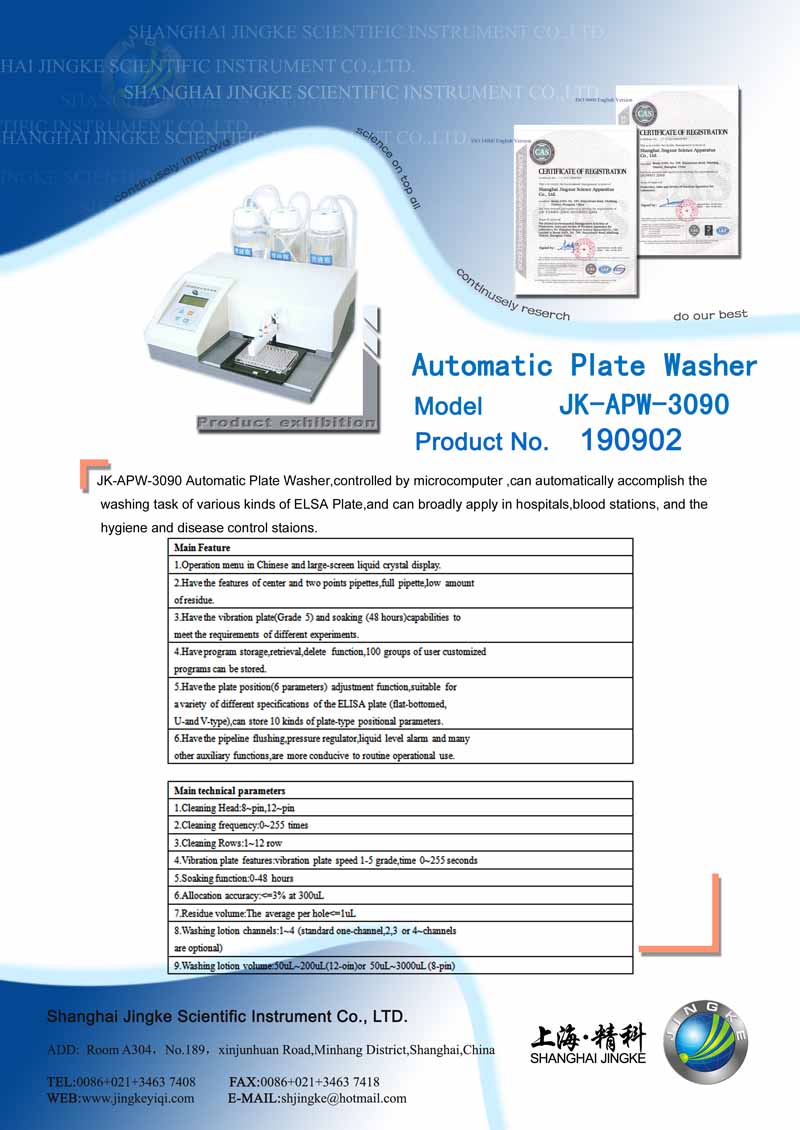

Main Feature

1.Operation menu in Chinese and large-screen liquid crystal display.

2.Have the features of center and two points pipettes,full pipette,low amount

of residue.

3.Have the vibration plate(Grade 5) and soaking (48 hours)capabilities to

meet the requirements of different experiments.

4.Have program storage,retrieval,delete function,100 groups of user customized

programs can be stored.

5.Have the plate position(6 parameters) adjustment function,suitable for

a variety of different specifications of the ELISA plate (flat-bottomed,

U-and V-type),can store 10 kinds of plate-type positional parameters.

6.Have the pipeline flushing,pressure regulator,liquid level alarm and many

other auxiliary functions,are more conducive to routine operational use.

Main technical parameters

1.Cleaning Head:8~pin,12~pin

2.Cleaning frequency:0~255 times

3.Cleaning Rows:1~12 row

4.Vibration plate features:vibration plate speed 1-5 grade,time 0~255 seconds

5.Soaking function:0-48 hours

6.Allocation accuracy:<=3% at 300uL

7.Residue volume:The average per hole<=1uL

8.Washing lotion channels:1~4 (standard one-channel,2,3 or 4~channels

are optional)

9.Washing lotion volume:50uL~200uL(12-oin)or 50uL~3000uL (8-pin)
