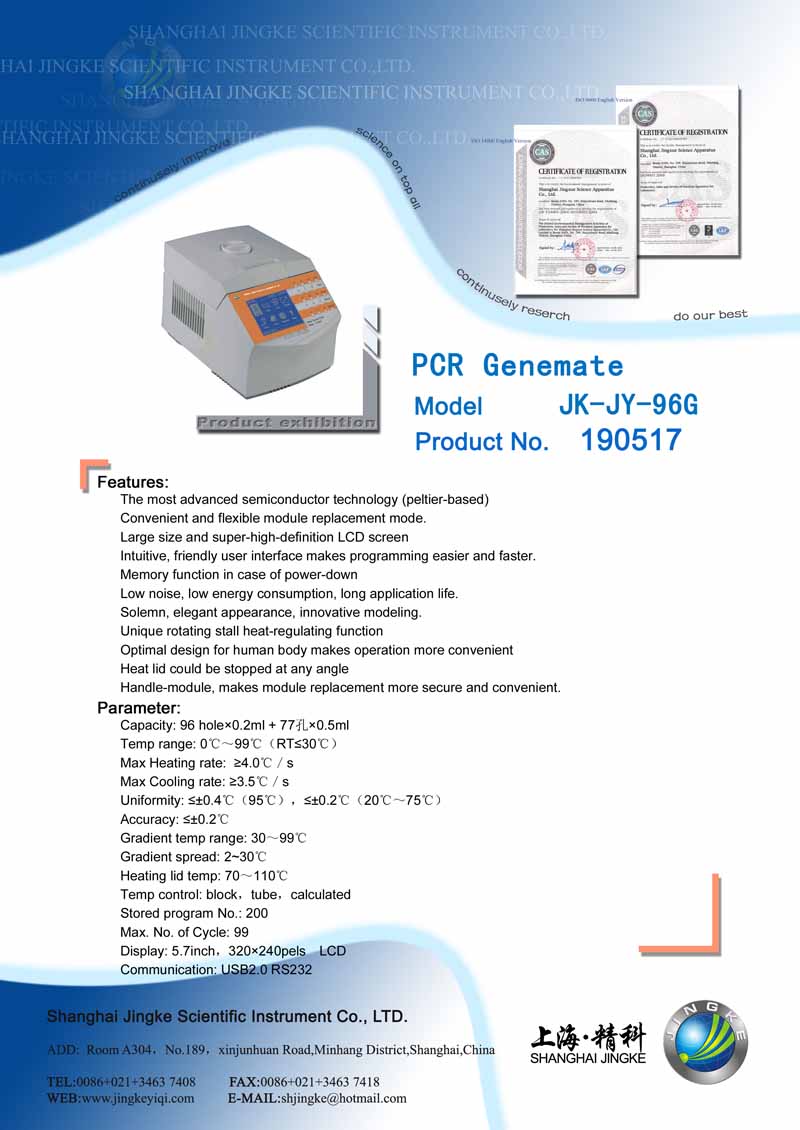

JK- JY-96G PCR Genemate Series

Features:

u  The most advanced semiconductor technology (peltier-based)

u  Convenient and flexible module replacement mode.

u  Large size and super-high-definition LCD screen

u  Intuitive, friendly user interface makes programming easier and faster.

u  Memory function in case of power-down

u  Low noise, low energy consumption, long application life.

u  Solemn, elegant appearance, innovative modeling.

u  Unique rotating stall heat-regulating function

u  Optimal design for human body makes operation more convenient

u  Heat lid could be stopped at any angle

u  Handle-module, makes module replacement more secure and convenient.

Parameter:

u  Capacity: 96孔×0.2ml + 77孔×0.5ml

u  Temp range: 0℃～99℃（RT≤30℃）

u  Max Heating rate:  ≥4.0℃／s

u  Max Cooling rate: ≥3.5℃／s

u  Uniformity: ≤±0.4℃（95℃），≤±0.2℃（20℃～75℃）

u  Accuracy: ≤±0.2℃

u  Gradient temp range: 30～99℃

u  Gradient spread: 2~30℃

u  Heating lid temp: 70～110℃

u  Temp control: block，tube，calculated

u  Stored program No.: 200

u  Max. No. of Cycle: 99

u  Display: 5.7inch，320×240pels　LCD

u  Communication: USB2.0 RS232
