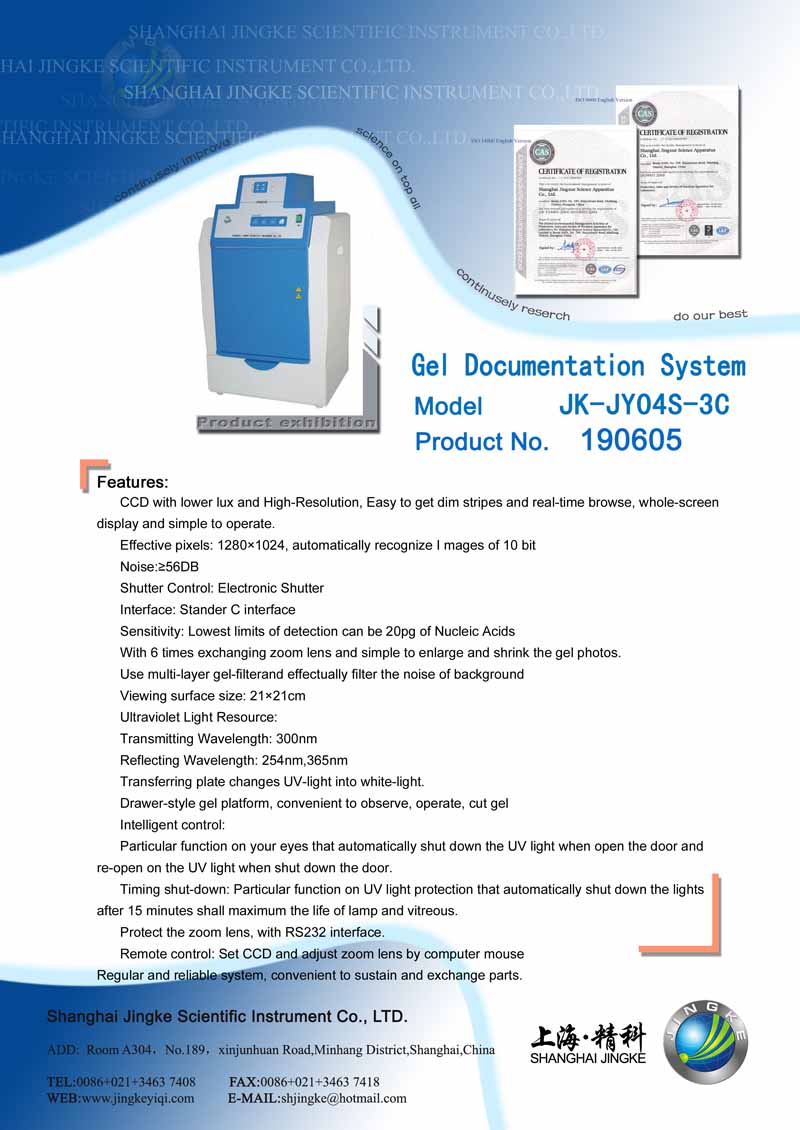

JK-JY04S-3CGel Documentation System

Features:

CCD with lower lux and High-Resolution, Easy to get dim stripes and real-time browse, whole-screen display and simple to operate.

Effective pixels: 1280×1024, automatically recognize I mages of 10 bit

Noise:≥56DB

Shutter Control: Electronic Shutter

Interface: Stander C interface

Sensitivity: Lowest limits of detection can be 20pg of Nucleic Acids

With 6 times exchanging zoom lens and simple to enlarge and shrink the gel photos.

Use multi-layer gel-filterand effectually filter the noise of background

Viewing surface size: 21×21cm

Ultraviolet Light Resource:

Transmitting Wavelength: 300nm

Reflecting Wavelength: 254nm,365nm

Transferring plate changes UV-light into white-light.

Drawer-style gel platform, convenient to observe, operate, cut gel

Intelligent control:

Particular function on your eyes that automatically shut down the UV light when open the door and re-open on the UV light when shut down the door.

Timing shut-down: Particular function on UV light protection that automatically shut down the lights after 15 minutes shall maximum the life of lamp and vitreous.

Protect the zoom lens, with RS232 interface.

Remote control: Set CCD and adjust zoom lens by computer mouse

Regular and reliable system, convenient to sustain and exchange parts.
