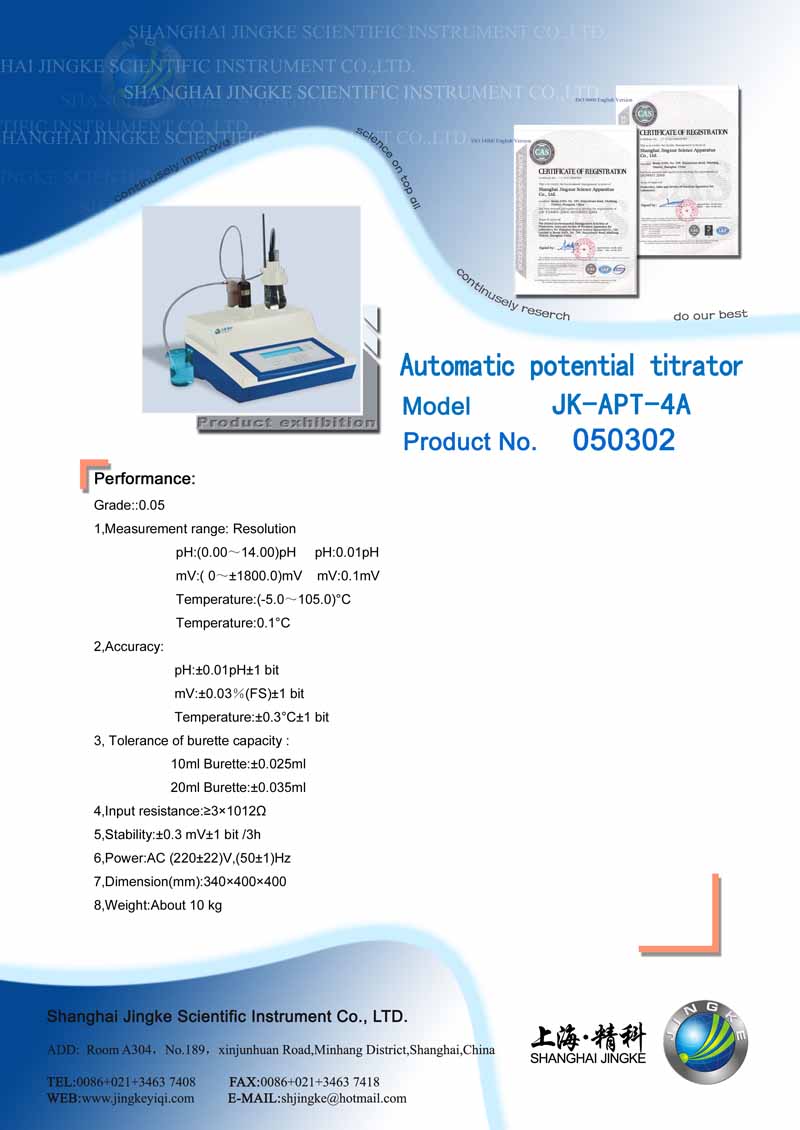

JK-APT-4A Automatic Potential Titrator

Characteristics:

        Microprocessor technology

        Special titration mode with the function of pre-titration, pre-setting terminal titration, empty terminal titration or manual titration.

        The meter can be used to make acid and alkali titration, oxidation-reduction titration, precipitation titration, complex titration and non-water titration etc., as well as pH measurement.

        Electricity cutting off protection.

        Mixing system uses PWM modulation techniques, with a software to adjusting the speed, low noise.

        With RS-232 interface (model TP-16, TP-24 and TP-40) printers can be connected to print the test data, titration curves and calculation results.

        A computer can be connected with data acquisition software to communicate.Can edits and modify the titration mode, remote control and can calculate all kinds of statistics.

        Titration system made of perchloric acid resistant materials

Performance:

Grade::0.05

1,Measurement range: Resolution

pH:(0.00～14.00)pH     pH:0.01pH

mV:( 0～±1800.0)mV    mV:0.1mV

Temperature:(-5.0～105.0)°C

Temperature:0.1°C

2,Accuracy:
　　　　　　pH:±0.01pH±1 bit

　　　　　　mV:±0.03％(FS)±1 bit
　　　　　　Temperature:±0.3°C±1 bit

3, Tolerance of burette capacity :

　　　      10ml Burette:±0.025ml

　　　      20ml Burette:±0.035ml

4,Input resistance:≥3×10¹²Ω

5,Stability:±0.3 mV±1 bit /3h

6,Power:AC (220±22)V,(50±1)Hz

7,Dimension(mm):340×400×400

8,Weight:About 10 kg

THIS PRODUCT CAN BE OEM

Has been assessed and registered as meeting the requirements of ISO9001:2008

Has been assessed and registered as meeting the requirements of GB/T24001-2004/ISO14001:2004

China’s quality reliable products

Chinese famous brand.
