View Large Image Product catalogue	Product name:	JK-LNC-125C Liquid nitrogen container（for storage II）

	Model:	JK-LNC-125C

	NO:	190358

	Price(FOB):	US$823 Order Order Contract Template

	Related Products:
		JK-LNC400 Liquid nitrogen container（large caliber） JK-NDS-80 Liquid nitrogen container（for air transportation） JK-NDS-3 Liquid nitrogen container（for air transportation） JK-LNC-125C Liquid nitrogen container（for storage II）(with canister )

Detailed

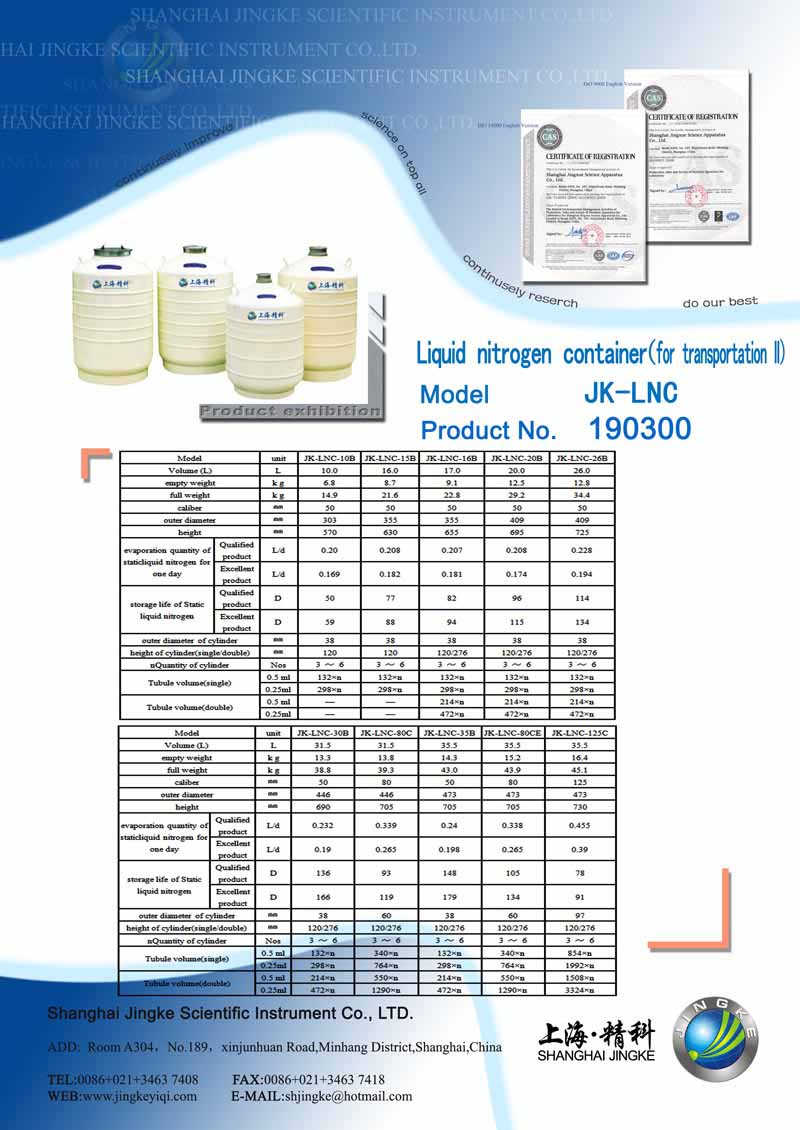

Liquid nitrogen container（for transportation II）

This series of products has moderate volume designed to a special support structure in the bottom of the container,which is suitable for the user who use it to transport., anti dumping suitable for long-distance transport and it is reliable

characteristics:

●High strength aluminum alloy

●According to user’s needs, lock protection cover can be provided to protect the samples security stored in the container(only forΦ 50 、Φ80 and Φ 125mm of caliber)

●Cylinder can be numbered for easy identification and independent access to the storage samples

●High vacuum multilayer insulation, quality assurance for not less than five years

●JK-LNC-35 series can select optional truck, so as to move products inside the room

Technical parameters:

Model		unit	JK-LNC-10B	JK-LNC-15B	JK-LNC-16B	JK-LNC-20B	JK-LNC-26B
Volume (L)		L	10.0	16.0	17.0	20.0	26.0
empty weight		k g	6.8	8.7	9.1	12.5	12.8
full weight		k g	14.9	21.6	22.8	29.2	34.4
caliber		㎜	50	50	50	50	50
outer diameter		㎜	303	355	355	409	409
height		㎜	570	630	655	695	725
evaporation quantity of staticliquid nitrogen for one day	Qualified product	L/d	0.20	0.208	0.207	0.208	0.228
evaporation quantity of staticliquid nitrogen for one day	Excellent product	L/d	0.169	0.182	0.181	0.174	0.194
storage life of Static liquid nitrogen	Qualified product	D	50	77	82	96	114
storage life of Static liquid nitrogen	Excellent product	D	59	88	94	115	134
outer diameter of cylinder		㎜	38	38	38	38	38
height of cylinder(single/double)		㎜	120	120	120/276	120/276	120/276
nQuantity of cylinder		Nos	3 ～ 6	3 ～ 6	3 ～ 6	3 ～ 6	3 ～ 6
Tubule volume(single)		0.5 ml	132×n	132×n	132×n	132×n	132×n
Tubule volume(single)		0.25ml	298×n	298×n	298×n	298×n	298×n
Tubule volume(double)		0.5 ml	—	—	214×n	214×n	214×n
Tubule volume(double)		0.25ml	—	—	472×n	472×n	472×n

Model		unit	JK-LNC-30B	JK-LNC-80C	JK-LNC-35B	JK-LNC-80CE	JK-LNC-125C
Volume (L)		L	31.5	31.5	35.5	35.5	35.5
empty weight		k g	13.3	13.8	14.3	15.2	16.4
full weight		k g	38.8	39.3	43.0	43.9	45.1
caliber		㎜	50	80	50	80	125
outer diameter		㎜	446	446	473	473	473
height		㎜	690	705	705	705	730
evaporation quantity of staticliquid nitrogen for one day	Qualified product	L/d	0.232	0.339	0.24	0.338	0.455
evaporation quantity of staticliquid nitrogen for one day	Excellent product	L/d	0.19	0.265	0.198	0.265	0.39
storage life of Static liquid nitrogen	Qualified product	D	136	93	148	105	78
storage life of Static liquid nitrogen	Excellent product	D	166	119	179	134	91
outer diameter of cylinder		㎜	38	60	38	60	97
height of cylinder(single/double)		㎜	120/276	120/276	120/276	120/276	120/276
nQuantity of cylinder		Nos	3 ～ 6	3 ～ 6	3 ～ 6	3 ～ 6	3 ～ 6
Tubule volume(single)		0.5 ml	132×n	340×n	132×n	340×n	854×n
Tubule volume(single)		0.25ml	298×n	764×n	298×n	764×n	1992×n
Tubule volume(double)		0.5 ml	214×n	550×n	214×n	550×n	1508×n
Tubule volume(double)		0.25ml	472×n	1290×n	472×n	1290×n	3324×n
