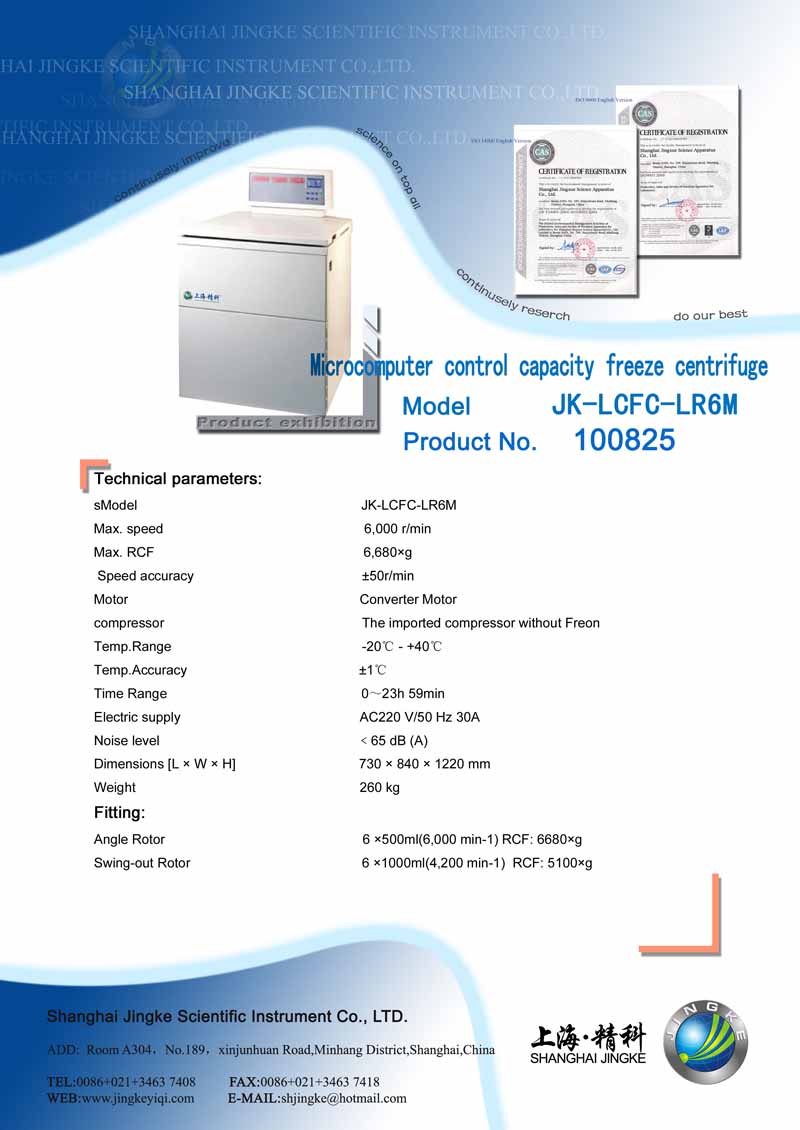

JK-LCFC-LR6M Large capacity freeze centrifuge

Features:

• It is controlled by computer and driven by frequency conversion motor, It is run with low noise and slight vibration, without carbon powder pollution.
• With touch panel and digital display, it can be operated by programming.
• The time of raising or reducing speed can be set arbitrarily by users, and RCF value will be automatically calculated. Meanwhile temperature is controlled by two ways of refrigeration and heating so as to meet the temperature requirement by blood platelet to separate.
• It can offer several protection measures to prevent exceed of the speed limit and temperature limit and imbalance, automatic locking of the cover, so as to ensure personal safety and also protect the machine from damage.
• It can be operated by both PC and panel of centrifuge, convenient to operate, It also can be linked to the network to realize the computerized management in local area network, Manufacturer can visit user’s centrifuge, diagnoses the trouble and then supply maintenance.

Technical parameters:

sModel                               JK-LCFC-LR6M
Max. speed                       6,000 r/min
Max. RCF                          6,680×g
 Speed accuracy                   ±50r/min
Motor                                 Converter Motor
compressor                        The imported compressor without Freon
Temp.Range                       -20℃ - +40℃
Temp.Accuracy                  ±1℃
Time Range                         0～23h 59min
Electric supply                    AC220 V/50 Hz 30A
Noise level                           ﹤65 dB (A)
Dimensions [L × W × H]   730 × 840 × 1220 mm
Weight                                  260 kg

Fitting:

Angle Rotor                       6 ×500ml(6,000 min-1) RCF: 6680×g
Swing-out Rotor               6 ×1000ml(4,200 min-1)  RCF: 5100×g
