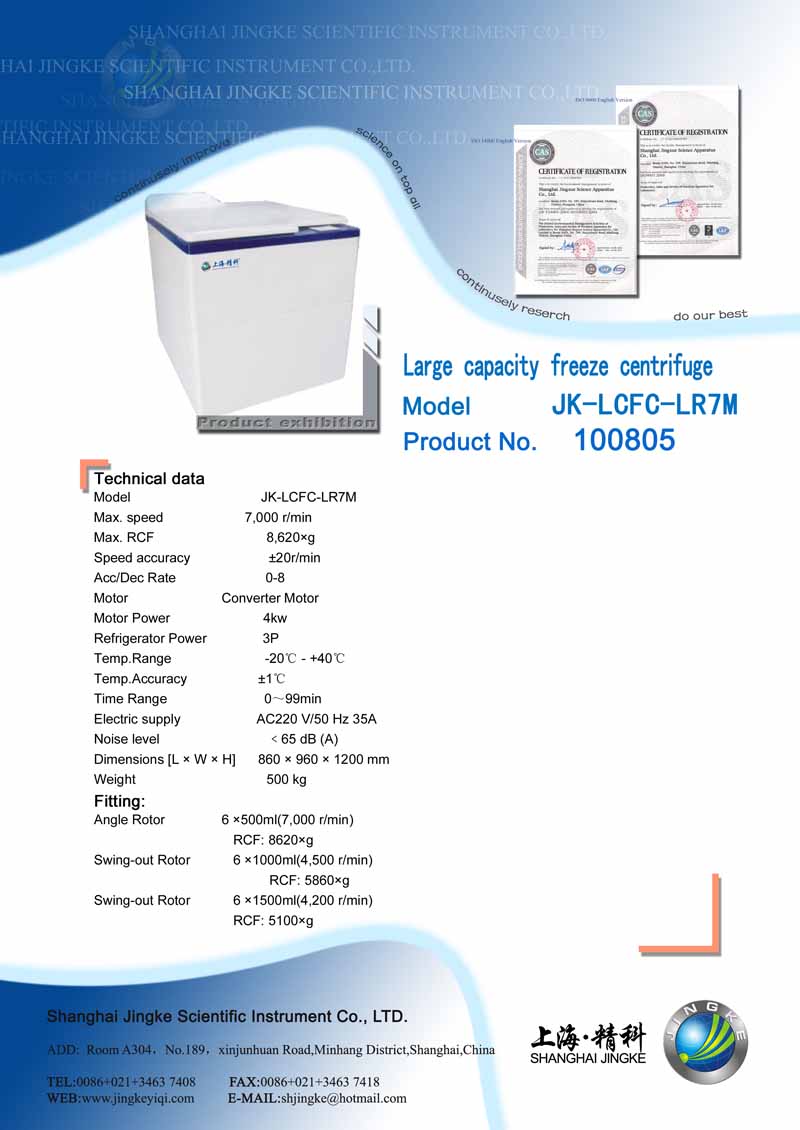

JK-LCFC-LR7M Large capacity freeze centrifuge
Features:
• Uses the international advanced numerical control electric circuit, accurately causes the centrifuge rotational speed to be stable
• The high efficiency frequency conversion velocity modulation electrical machinery, provides the import frequency conversion velometer, guarantees the entire machine service life to be longer
• Use the imported compressor with the controlled temp, technology of pair of way by refrigerating or heating to meet the temperature control-accuracy, less noisily
• Max.Capacity : 6 x 1500ml
• Soft-touch panel, digital display programmable operation, it easy to use operator interface
• The operation sequence may arrange, may save, may take; The user may establish 9 procedures to supply the daily operation use
• To ensure high-quality separations from choosing properly, you can control the rates of acceleration and deceleration from 0-8 profiles with RCF value calculating automatically
• With the self-diagnostic system it is provided with high-strength chamber-coating and protective means for imbalance, over temperature, over speed and electronic lock so it is safe and reliable to use it
Technical data
Model JK-LCFC-LR7M
Max. speed 7,000 r/min
Max. RCF 8,620×g
Speed accuracy ±20r/min
Acc/Dec Rate 0-8
Motor Converter Motor
Motor Power 4kw
Refrigerator Power 3P
Temp.Range -20℃ - +40℃
Temp.Accuracy ±1℃
Time Range 0～99min
Electric supply AC220 V/50 Hz 35A
Noise level ﹤65 dB (A)
Dimensions [L × W × H] 860 × 960 × 1200 mm
Weight 500 kg
Fitting:
Angle Rotor 6 ×500ml(7,000 r/min)
RCF: 8620×g
Swing-out Rotor 6 ×1000ml(4,500 r/min)
RCF: 5860×g
Swing-out Rotor 6 ×1500ml(4,200 r/min)
RCF: 5100×g
|
