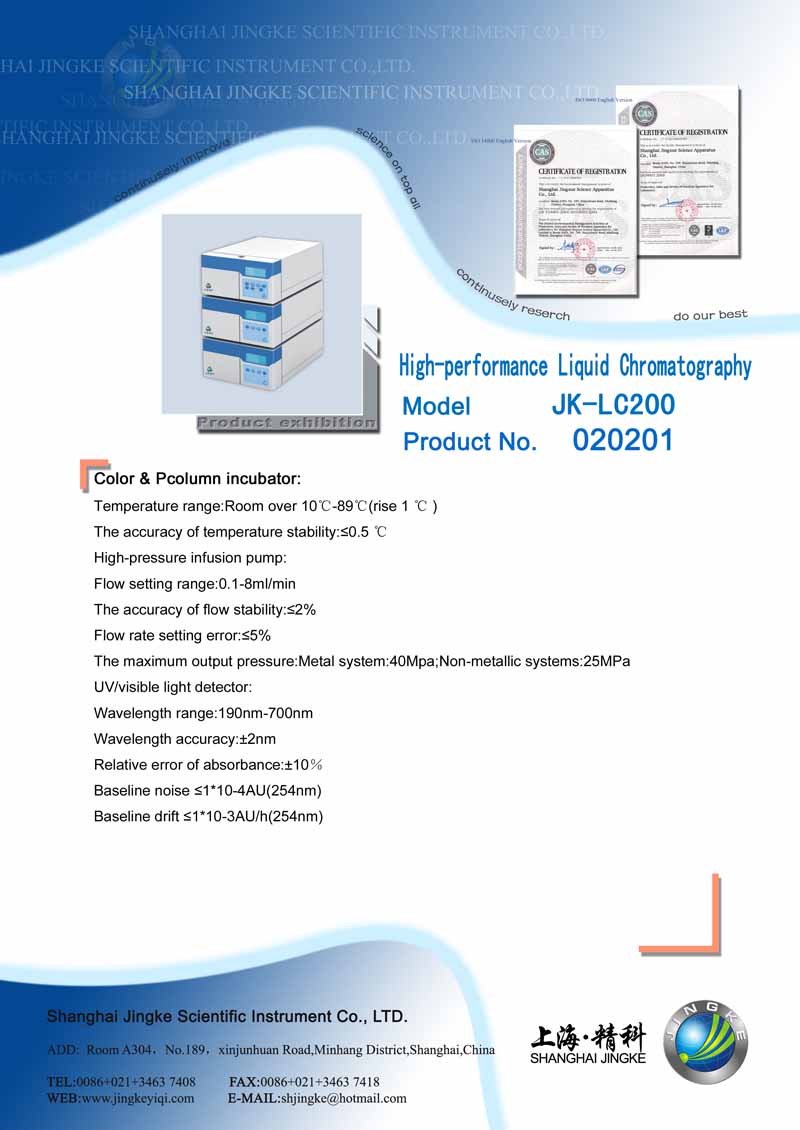

JK-LC200  High-performance Liquid Chromatography

Application:

Tt is high-performance designed HPLC and composed of  high-pressure infusion pumps, injection separation system, UV-visible detector(base model)

Characteristics:

Complementary high-pressure infusion pump made of stainless steel or polymer material of microcomputer-based dual-pump head, with self-checking system.UV-visible detector / Visible detector system adopts to grating system. Tailor-made micro-flow cell. Can set the time-varying wavelength analysis. A five-inch color LCD screen can real-timely observe the test results and spectra, and can be a window of various operational parameter transferred in The injector adopted a standard six-way valve of the world general purpose: connect conduit adopts to stainless steel pipe or PEEK pipe, separation column adopts to a standard C18 column.It is equipped with incubators, two 70mm-250mm column tube can be put into operation. Catheter and sealing gaskets used in the analysis system and the nut connectors are the same as those used in the world,can share with the accessories of the import instrument.

Signal output, there are the data processor interface (1AU/V) ,the recorder interface 10mV/ FS), and RS232 interface to achieve the two-way communication with the chromatography workstation

Performance:

Color & Pcolumn incubator:

Temperature range:Room over 10℃-89℃(rise 1 ℃ )

The accuracy of temperature stability:≤0.5 ℃

High-pressure infusion pump:
Flow setting range:0.1-8ml/min

The accuracy of flow stability:≤2%

Flow rate setting error:≤5%

The maximum output pressure:Metal system:40Mpa;Non-metallic systems:25MPa

UV/visible light detector:

Wavelength range:190nm-700nm

Wavelength accuracy:±2nm

Relative error of absorbance:±10％

Baseline noise ≤1*10-4AU(254nm)

Baseline drift ≤1*10-3AU/h(254nm)

We can provide you with OEM service

* Our company has been assessed and registered as meeting the requirements of ISO9001:2008

*Our company has been assessed and registered as meeting the requirements of GB/T24001-2004/ISO14001:2004

*Our products have won the certification of good quality

* The Chinese famous brand has been awarded to the products
