JK-PMCD-20 Precisely circulating type incubator
Product Specification:
Oumai devoted itself to developing the humanly scientific researching technology .It is widely applied to universities, scientific research and biology, agriculture, environment protection section for depositing bacterium, organism cultivating, and scientific researching.
1、Matching with the temperature controller of double digital displays has the function of over-temp and deviation protecting, locating and alarming.
2、Optional customer process-controlling machine with several intelligent programs, meeting your complicated controlling task.
3、Optional liquid crystal temperature controller of 30-stage program processor with high precision is about to in use, providing reliable insurance for scientific researcher.
Product features:
1、Hot blast convection Even and clear
Rear-mounted hot blast convectional structure, improving the principle of the natural oven, ensuring that the temperature in uniform at every side of the working chamber, making the specimen in the working chamber heated evenly and solidly.
2、Temperature controlling, Temperature locating, Constant-temp working
Advanced and reasonable temperature sensor equipment, in the range of RT-70oC, with microcomputer PID controller, achieving the function of auto-adjusting, locating ,and setting, without the disadvantage of overshooting.
3、Precisely special technology Particular enjoyment
Adjustable air convection valve, achieving the exchange of air convection and draining away the inside wasted gas ,so as to protect the health of the operator, environment protection and sanitation.
4、Special craft Safe and convenient
Reasonably heating equipment adopted special material by advanced technology, overcoming the defect of the big difference in temperature of the working chamber, providing the most accurate temperature of testing.
5、Temperature increases quickly swift power while lower wastage
The adopted fully reflectional high grade hot insulation material can reach the target of quicker up –rising temperature and hot resisting, environment protection and saving power.
6、Circulated connection Even temperature
Forced circulate-convection heating , making the temperature of the insider more even.
7、Pollution-resistant working chamber Neat and tidy
The working chamber is precisely manufactured by the fully imported stainless steel, clean and clear.
8、Embedded tracks Stable and convenient
The stainless layer of the embedded tracks with handle makes your taking out the object more stable and convenient.

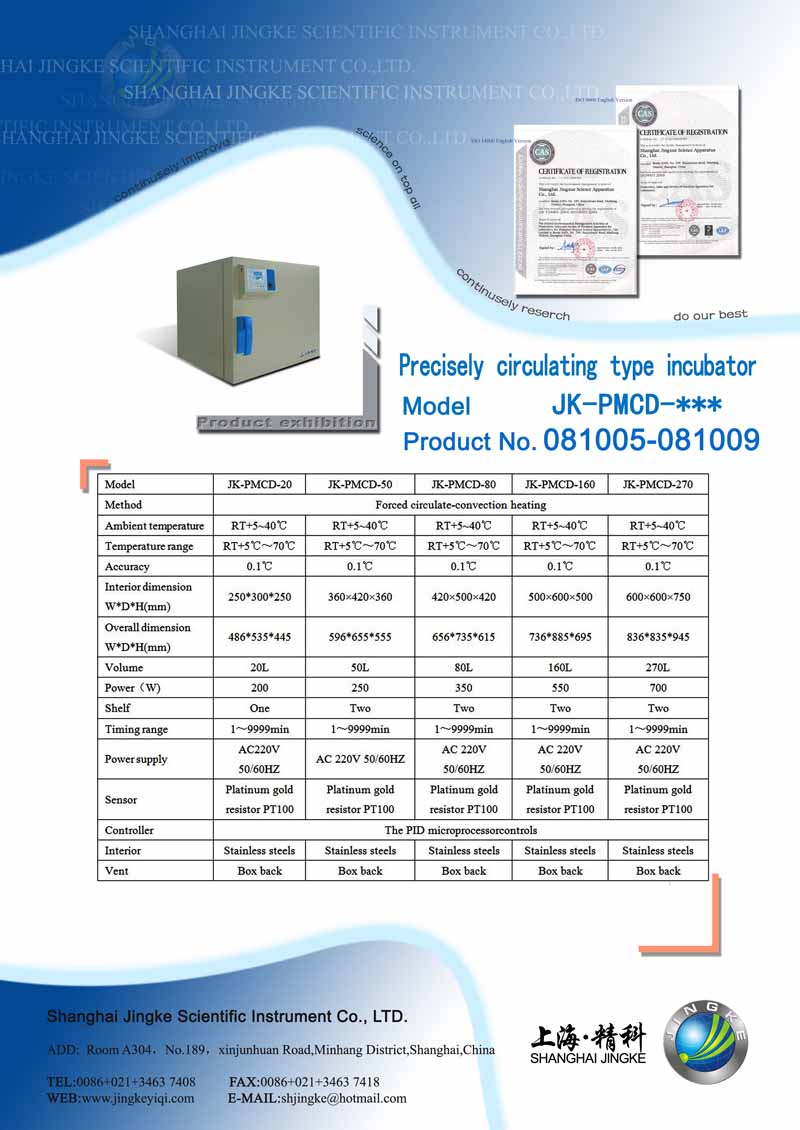

Technical parameters:
Model
|
JK-PMCD-20
|
JK-PMCD-50
|
JK-PMCD-80
|
JK-PMCD-160
|
JK-PMCD-270
|
Method
|
Forced circulate-convection heating
|
Ambient temperature
|
RT+5~40℃
|
RT+5~40℃
|
RT+5~40℃
|
RT+5~40℃
|
RT+5~40℃
|
Temperature range
|
RT+5℃~70℃
|
RT+5℃~70℃
|
RT+5℃~70℃
|
RT+5℃~70℃
|
RT+5℃~70℃
|
Accuracy
|
0.1℃
|
0.1℃
|
0.1℃
|
0.1℃
|
0.1℃
|
Interior dimension W*D*H(mm)
|
250*300*250
|
360×420×360
|
420×500×420
|
500×600×500
|
600×600×750
|
Overall dimension W*D*H(mm)
|
486*535*445
|
596*655*555
|
656*735*615
|
736*885*695
|
836*835*945
|
Volume
|
20L
|
50L
|
80L
|
160L
|
270L
|
Power(W)
|
200
|
250
|
350
|
550
|
700
|
Shelf
|
One
|
Two
|
Two
|
Two
|
Two
|
Timing range
|
1~9999min
|
1~9999min
|
1~9999min
|
1~9999min
|
1~9999min
|
Power supply
|
AC 220V 50/60HZ
|
AC 220V 50/60HZ
|
AC 220V 50/60HZ
|
AC 220V 50/60HZ
|
AC 220V 50/60HZ
|
Sensor
|
Platinum gold resistor PT100
|
Platinum gold resistor PT100
|
Platinum gold resistor PT100
|
Platinum gold resistor PT100
|
Platinum gold resistor PT100
|
Controller
|
The PID microprocessorcontrols
|
Interior
|
Stainless steels
|
Stainless steels
|
Stainless steels
|
Stainless steels
|
Stainless steels
|
Vent
|
Box back
|
Box back
|
Box back
|
Box back
|
Box back
|
|
